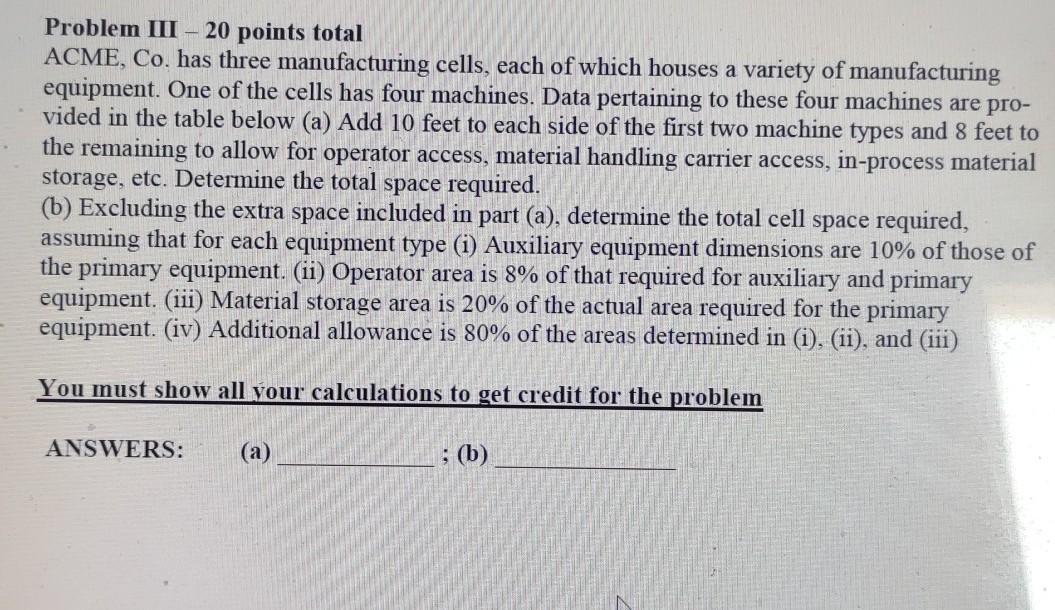

Problem III 20 points total ACME, Co. has three manufacturing cells, each of which houses a variety of manufacturing equipment. One of the cells has four machines. Data pertaining to these four machines are pro- vided in the table below (a) Add 10 feet to each side of the first two machine types and 8 feet to the remaining to allow for operator access, material handling carrier access, in-process material storage, etc. Determine the total space required. (b) Excluding the extra space included part (a), determine the total cell space required, assuming that for each equipment type (i) Auxiliary equipment dimensions are 10% of those of the primary equipment. (ii) Operator area is 8% of that required for auxiliary and primary equipment. (iii) Material storage area is 20% of the actual area required for the primary equipment. (iv) Additional allowance is 80% of the areas determined in (i), (ii), and (iii) You must show all your calculations to get credit for the problem ANSWERS: (a) ; (b) Problem III 20 points total ACME, Co. has three manufacturing cells, each of which houses a variety of manufacturing equipment. One of the cells has four machines. Data pertaining to these four machines are pro- vided in the table below (a) Add 10 feet to each side of the first two machine types and 8 feet to the remaining to allow for operator access, material handling carrier access, in-process material storage, etc. Determine the total space required. (b) Excluding the extra space included part (a), determine the total cell space required, assuming that for each equipment type (i) Auxiliary equipment dimensions are 10% of those of the primary equipment. (ii) Operator area is 8% of that required for auxiliary and primary equipment. (iii) Material storage area is 20% of the actual area required for the primary equipment. (iv) Additional allowance is 80% of the areas determined in (i), (ii), and (iii) You must show all your calculations to get credit for the problem ANSWERS: (a) ; (b)
