Question: Problem n 2 - 2 5 pts For the beam and loading shown, consider section n - n and determine the shearing stress at point

Problem n2-25pts

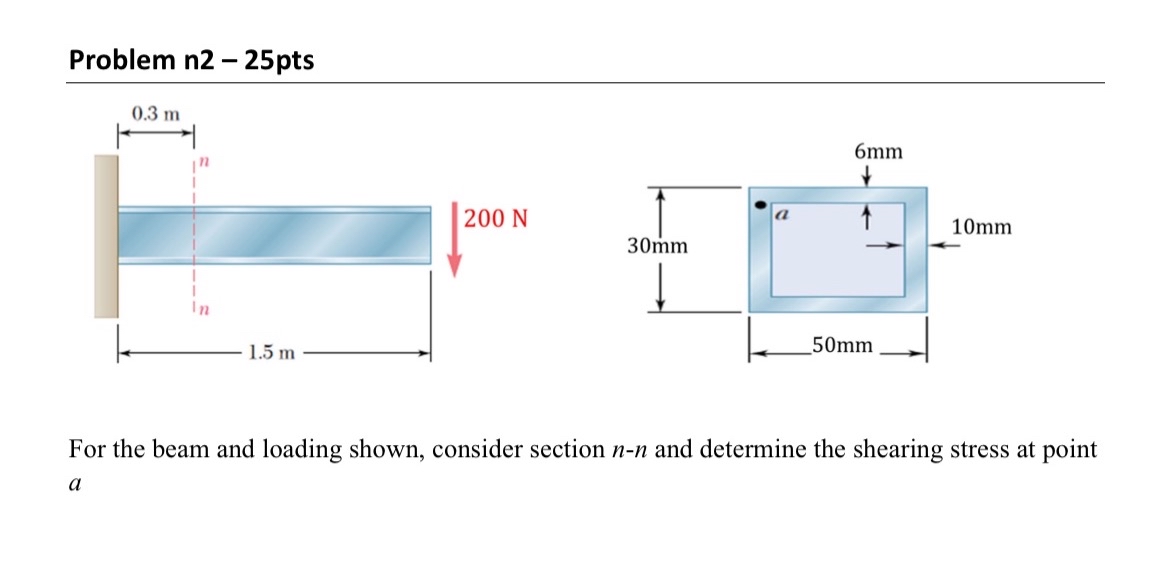

For the beam and loading shown, consider section n-n and determine the shearing stress at point a
Problem n 2 - 2 5 pts For the beam and loading

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Required information For the beam and loading shown, consider section n-n. Given: P = 15 kips. P 20 kips 2 ft 2 ft 2 ft 2 ft Determine the largest shearing stress in that section. The largest...
