Problem No$.5$

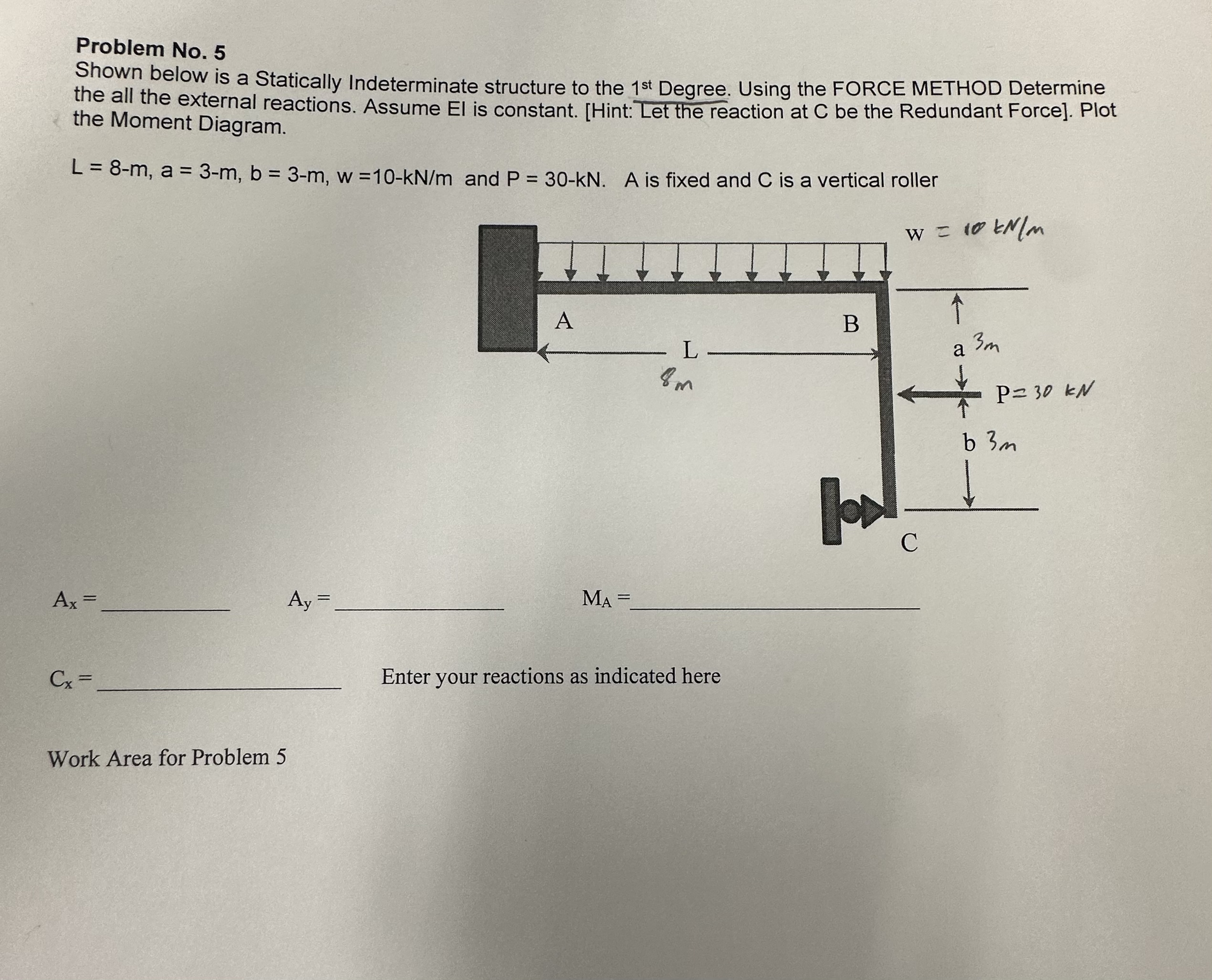

Shown below is a Statically Indeterminate structure to the $1^{st}$ Degree. Using the FORCE METHOD Determine the all the external reactions. Assume El is constant. $[$Hint: Let the reaction at C be the Redundant Force$].$ Plot the Moment Diagram.

$L=8-m,a=3-m,b=3-m,w=10-k\frac{N}{m}$ and $P=30-kN.,A$ is fixed and $C$ is a vertical roller

$A_x=A_y=M_A=$

$C_x=$ Enter your reactions as indicated here

Work Area for Problem $5$
