Problem: $($of $14)$

Do not round intermediate answers. Give your final answer$($s$)$ to three decimal places. Check your units.

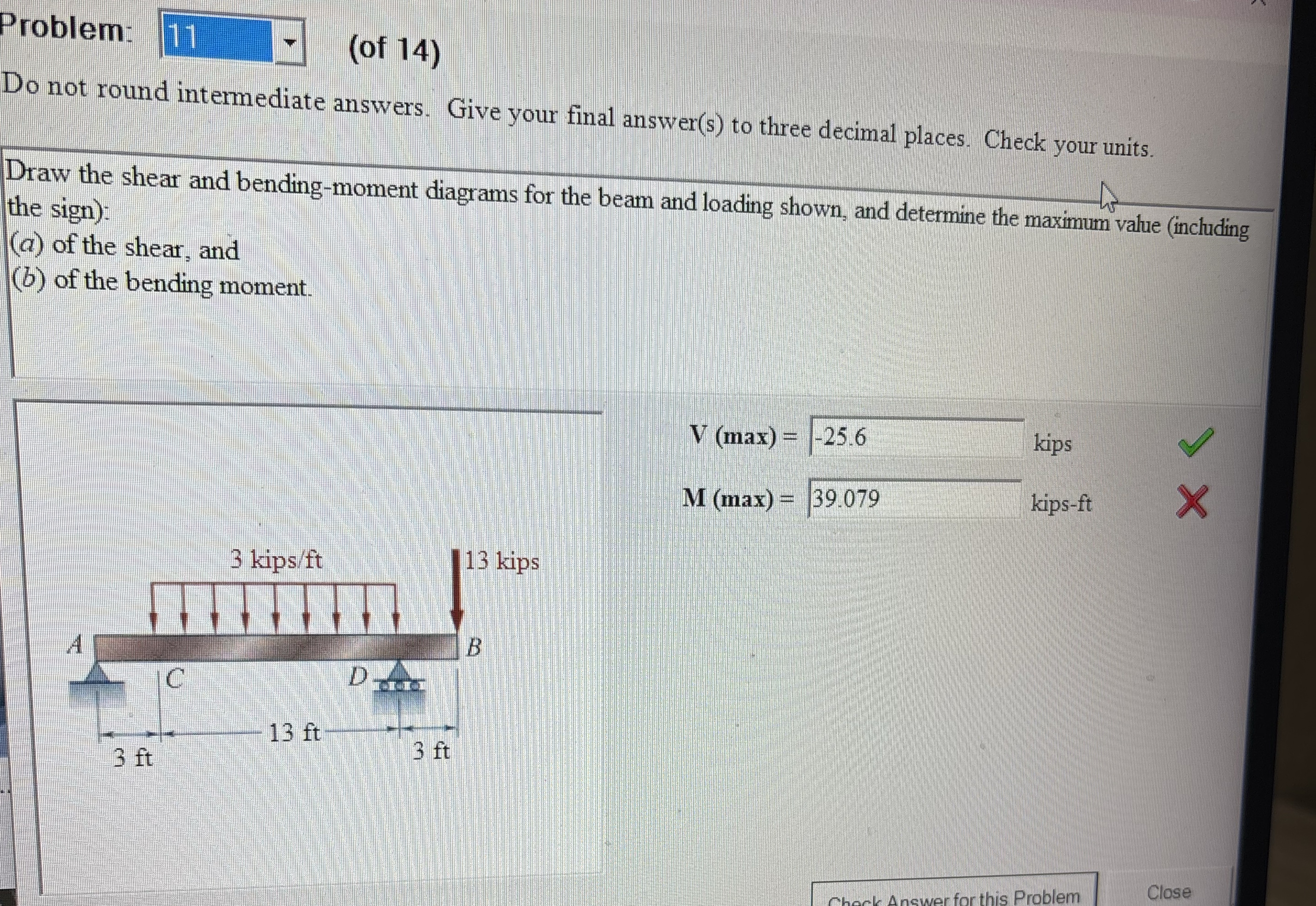

Draw the shear and bending$-$moment diagrams for the beam and loading shown, and determine the maximum value $($including the sign$)$:

$($a$)$ of the shear, and

$($b$)$ of the bending moment.

$V(max)=$ kips

$M(max)=$ kips$-ft$
