Problem:

$($of $18)$

Do not round intermediate answers. Give your final answer$($s$)$ to three decimal places. Check your units.

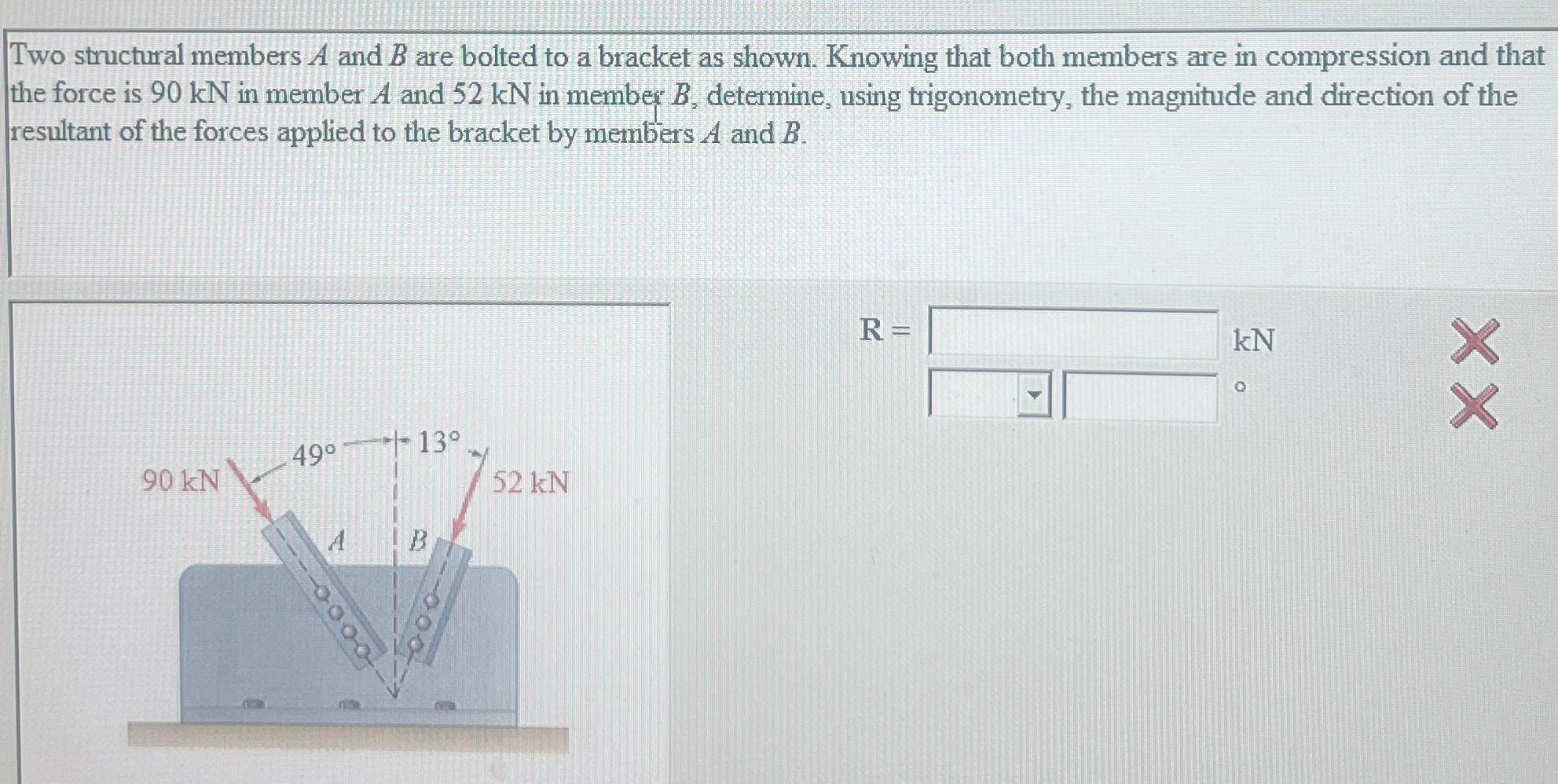

Two structural members A and $B$ are bolted to a bracket as shown. Knowing that both members are in compression and that

the force is $90$ kN in member A and $52$ kN in member $B,$ determine, using trigonometry, the magnitude and direction of the

resultant of the forces applied to the bracket by members A and $B.$

$R=$

kN

Two structural members A and $B$ are bolted to a bracket as shown. Knowing that both members are in compression and that

the force is $90$ kN in member A and $52$ kN in member $B,$ determine, using trigonometry, the magnitude and direction of the

resultant of the forces applied to the bracket by members A and $B.$

$R=$

kN
