Question: Problem Solving - Answer the following questions. Be sure place solutions in the provided box, including the proper number of signi to the right forces

Problem Solving - Answer the following questions. Be sure place solutions in the provided box, including the proper number of signi to the right forces in P2=9kN and P3=12kN. Box all answers.

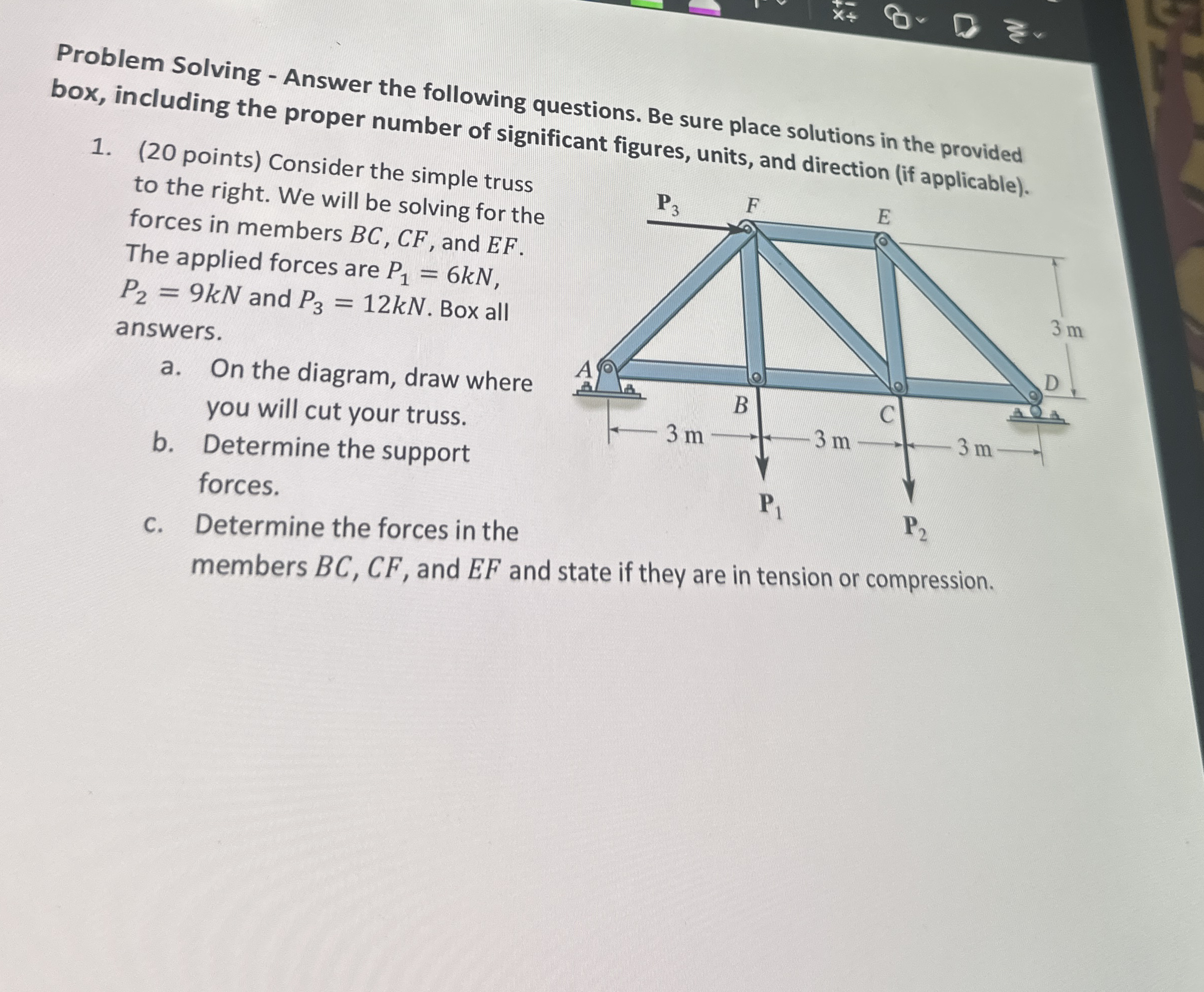

a. On the diagram, draw where you will cut your truss.
b. Determine the support forces.
c. Determine the forces in the members BC,CF, and EF and state if they are in tension or compression.
Problem Solving - Answer the following questions.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
