Question: Problem Statement: You are an engineering consultant tasked with evaluating a cantilever beam AD of length L = 6 m , which is fixed at

Problem Statement: You are an engineering consultant tasked with evaluating a cantilever beam AD of length

L = 6 m,

which is fixed at end A and free at end

D .

Determine: a

)

the resultant force, b

)

its location, c

)

the moment about point A and d

)

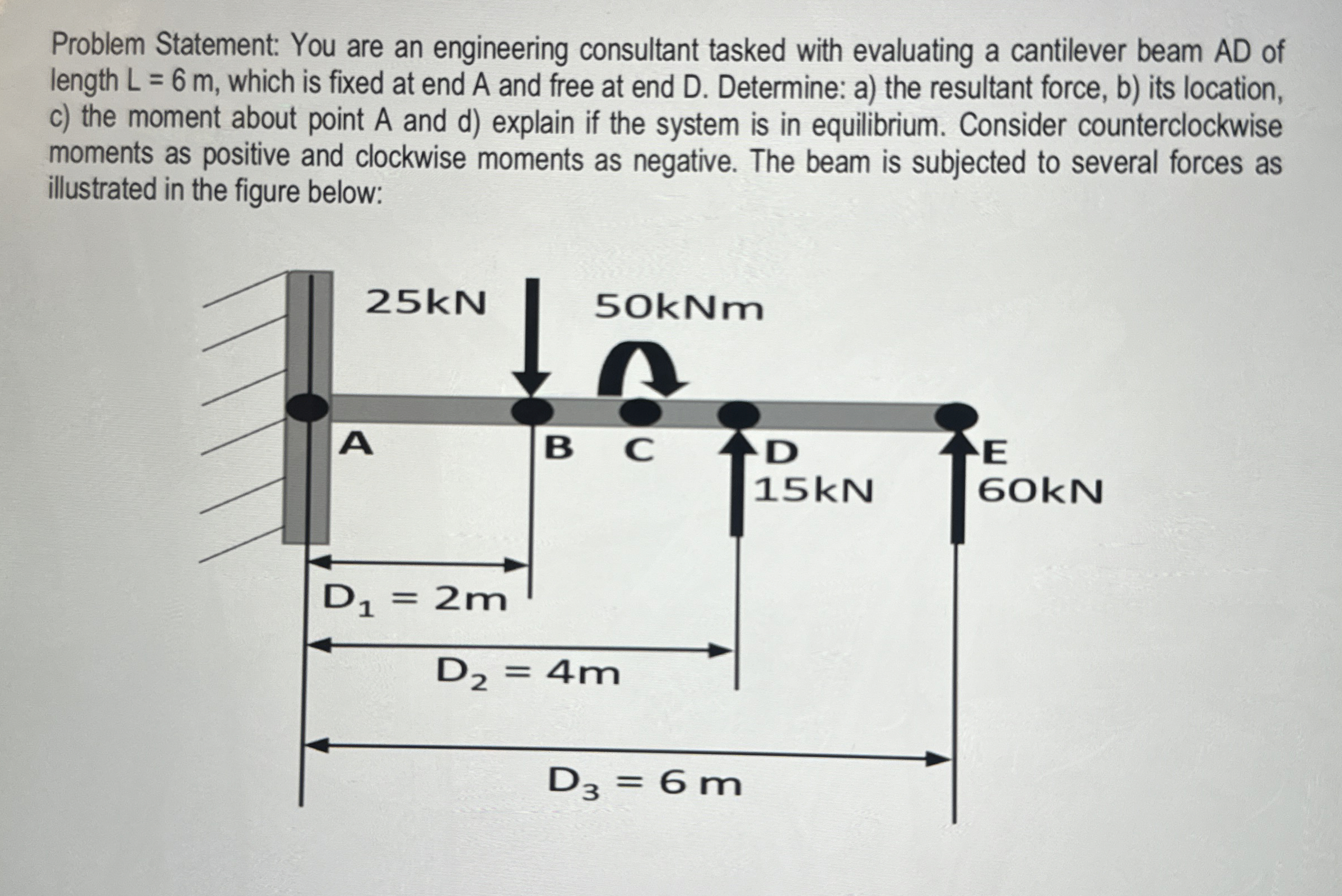

explain if the system is in equilibrium. Consider counterclockwise moments as positive and clockwise moments as negative. The beam is subjected to several forces as illustrated in the figure below:

Problem Statement: You are an engineering

Step by Step Solution

There are 3 Steps involved in it
