Question: Problem _ #U 6 ] Using the truth table below, develop a simplitied SUP expression using a Karnaugh Map. Problem _ # 0 7 ]

Problem_#U6] Using the truth table below, develop a simplitied SUP expression using a
Karnaugh Map.

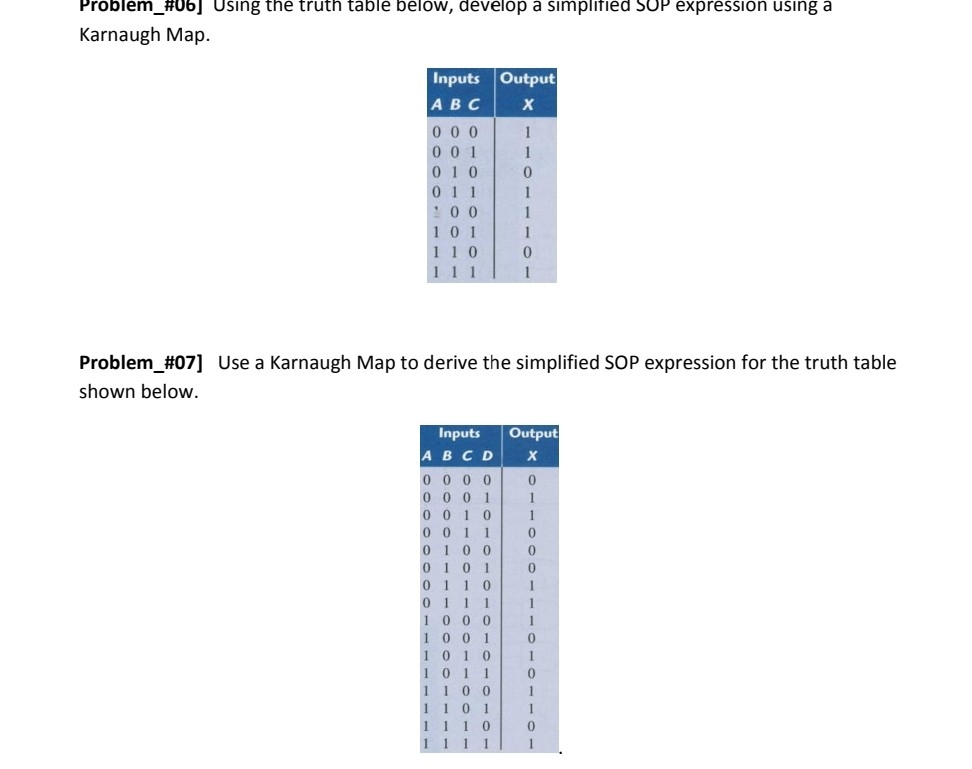

Problem_#07] Use a Karnaugh Map to derive the simplified SOP expression for the truth table
shown below.
Problem _ #U 6 ] Using the truth table below,

Step by Step Solution

There are 3 Steps involved in it
