Question: Problem:A wedge beta is placed between two blocks B and C , which are being compressed by forces P from both sides. Assuming that

Problem:A wedge

\

beta is placed between two blocks B and C

,

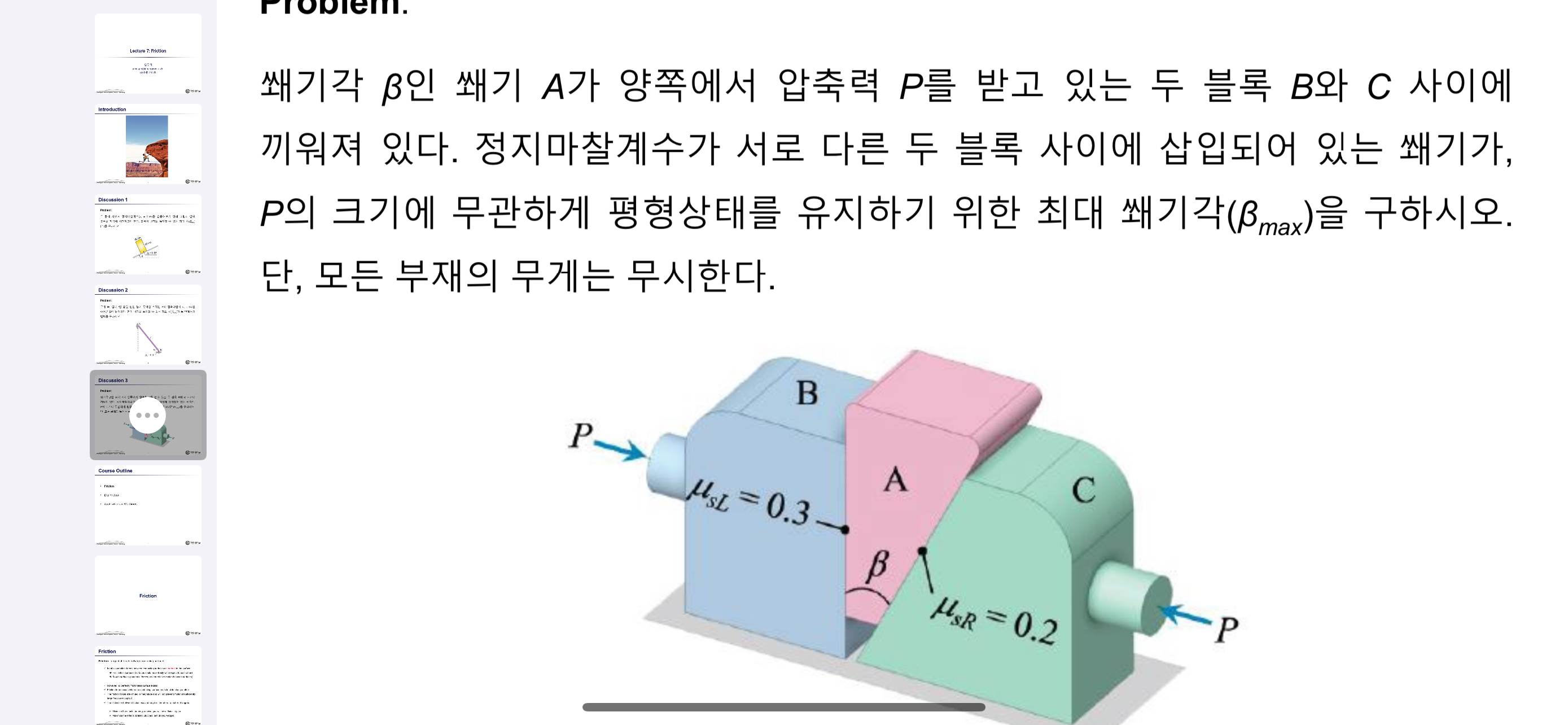

which are being compressed by forces P from both sides. Assuming that the coefficient of static friction differs between the two blocks, determine the maximum wedge angle

(\

beta

_{\

text

{

max

}})

that ensures equilibrium regardless of the magnitude of P

.

Neglect the weight of all components.

$Problem:A wedge \ beta is placed between two$

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
