Question: Problems ( 1 - 3 ) . Determine the differential equations governing the motion of the systems shown in Figures P 1 - P 3

Problems

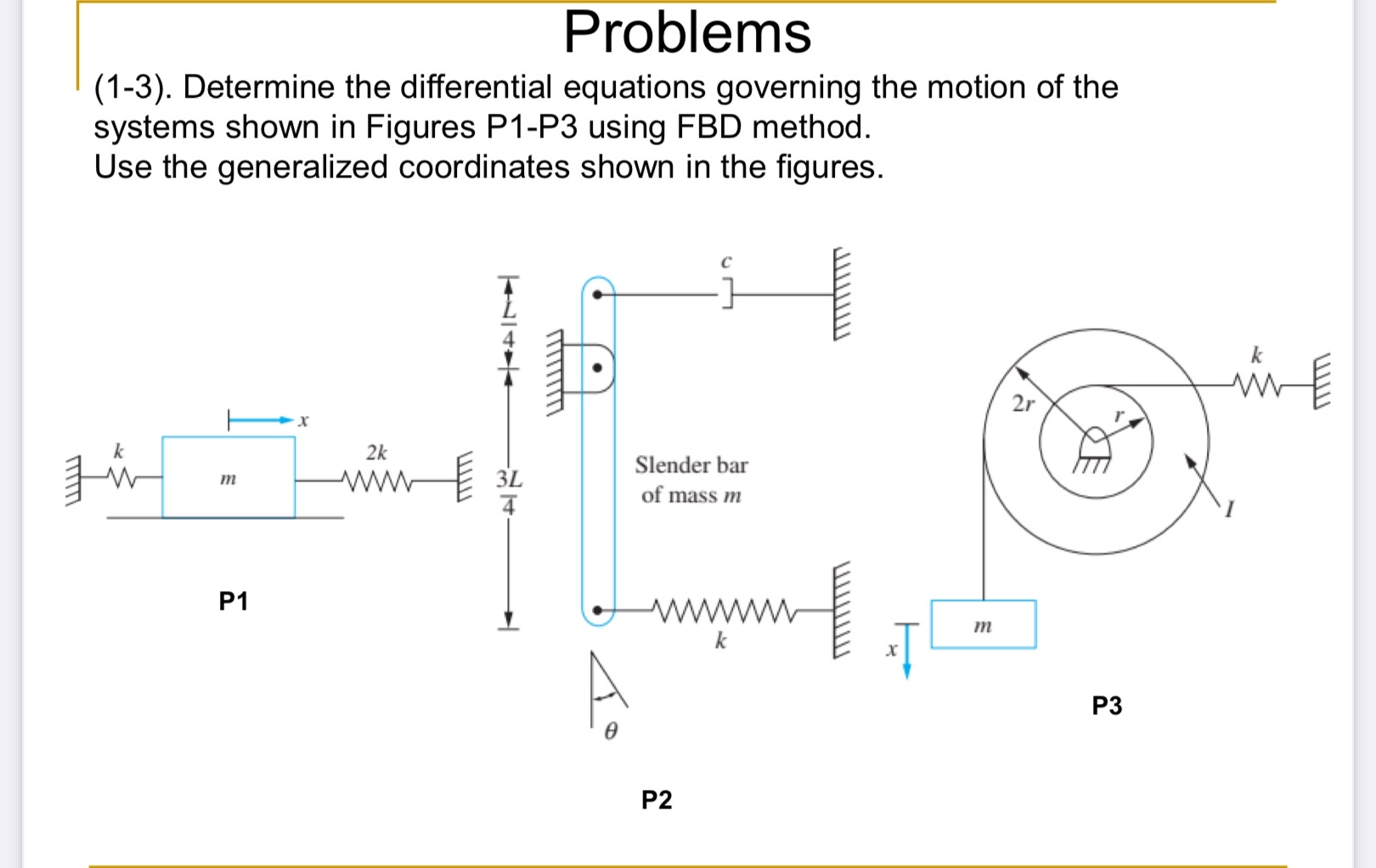

(1-3). Determine the differential equations governing the motion of the
systems shown in Figures P1-P3 using FBD method.
Use the generalized coordinates shown in the figures.
Need P1 and P2
Problems ( 1 - 3 ) . Determine the differential

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
