Problems 1-8 all. Answer key below if needed.

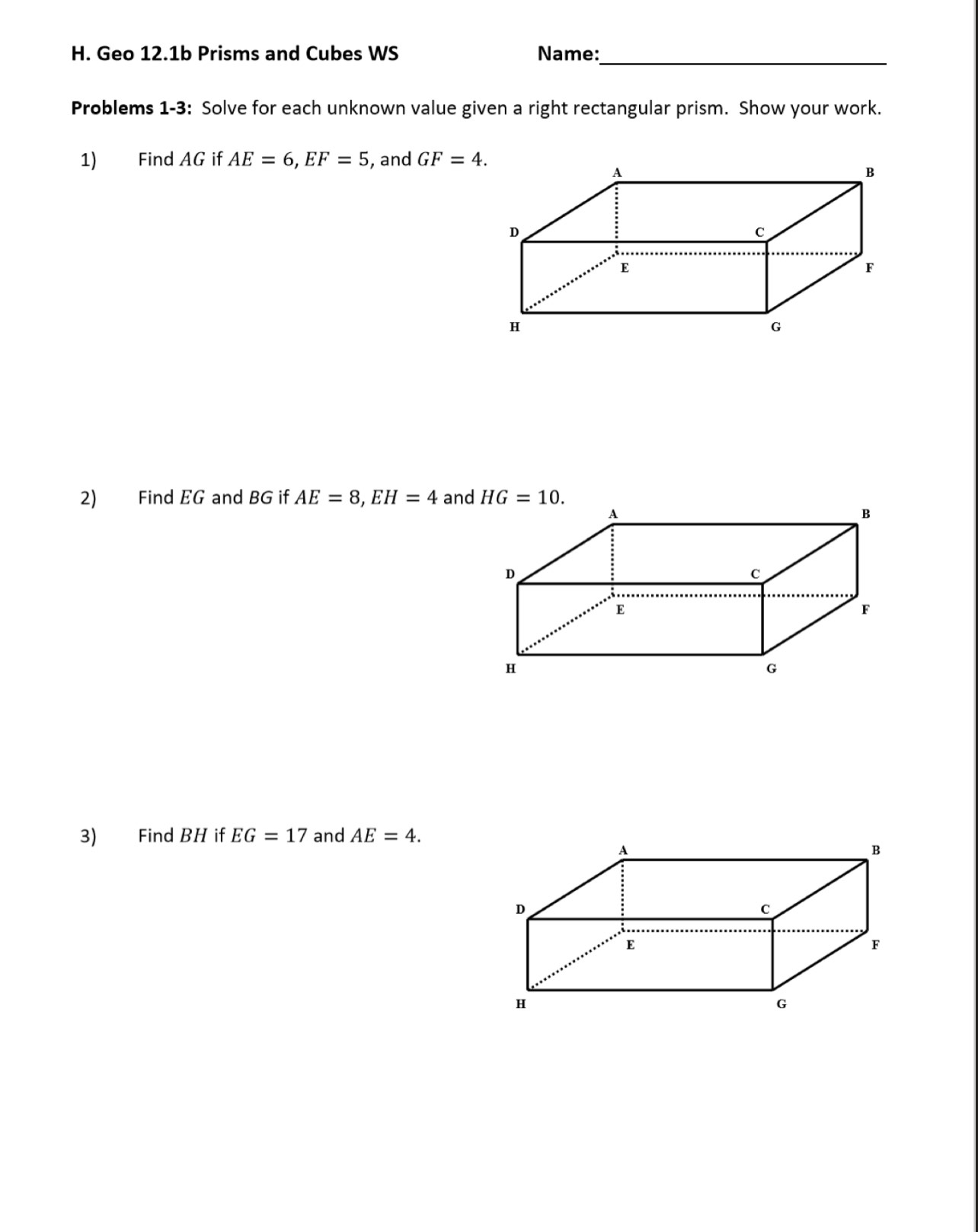

H. Geo 12.1b Prisms and Cubes WS Name: Problems 1-3: Solve for each unknown value given a right rectangular prism. Show your work. 1) Find AG if AE = 6, EF = 5, and GF = 4. . ........ .......... H G 2) Find EG and BG if AE = 8, EH = 4 and HG = 10. F .........".. H G 3) Find BH if EG = 17 and AE = 4. B D E H GProblems 4-5. Solve for each unknown value given a cube. 4) Find EH and EC if AH = 6. F H G 5) Find BH and ED if CG = 5. F H 6) The diagonal of a cube is 12 cm. Find: TA= V=7) A right rectangular prism having dimensions: length = 18 in, width = 12 inches, height = 10 in. Find: TA= V= 8) A right isosceles trapezoidal prism. LA= TA= V= 45 9) The volume of a rectangular prism having a width of 4 ft and height of 9 ft is 216 ft3. Find the length and total area of the prism. Length=_ TA=_H.Geo 12.1b Prisms and Cubes WS (Key) 1) AG = V77 2) EG = 2V29 BG = 4V5 3) BH = V305 4) EH = 3V2 EC = 3V6 5 ) BH = 5v3 ED = 5V2 6) TA = 288 in2 V = 192v3 in3 7) TA = 1032 V = 2160 8) LA = 24 + 12v2 TA = 40 + 12v2 V = 24 9) Length = 6 ft TA = 228 ft2
