Question: Problems 3 ( 3 0 points ) : Determine the forces in the members identified by x of the trusses

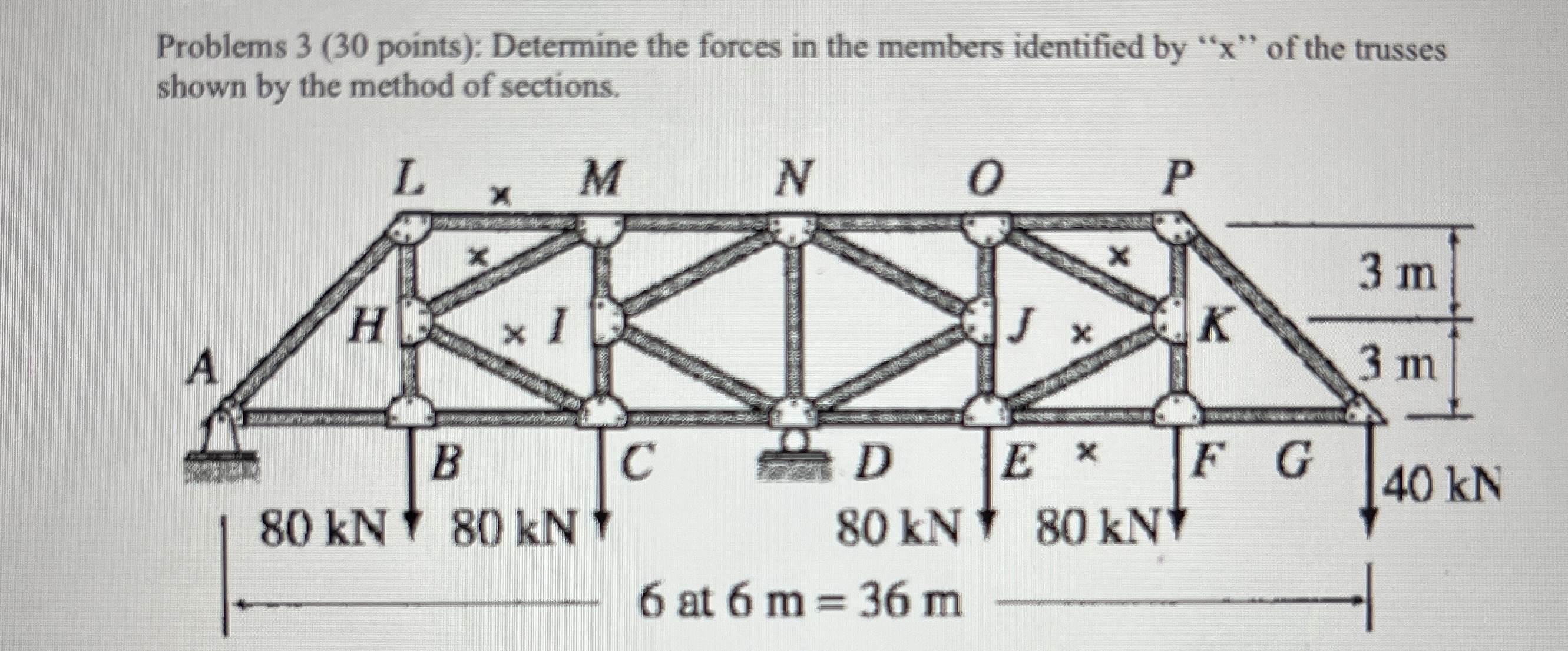

Problems 3(30 points): Determine the forces in the members identified by "x" of the trusses
Problems 3 ( 3 0 points ) : Determine the forces

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
