Question: Problems 3 6 Points ) The beam is loaded as shown. Determine the reactions at the wall A . Draw the shear and moment iagrams

Problems

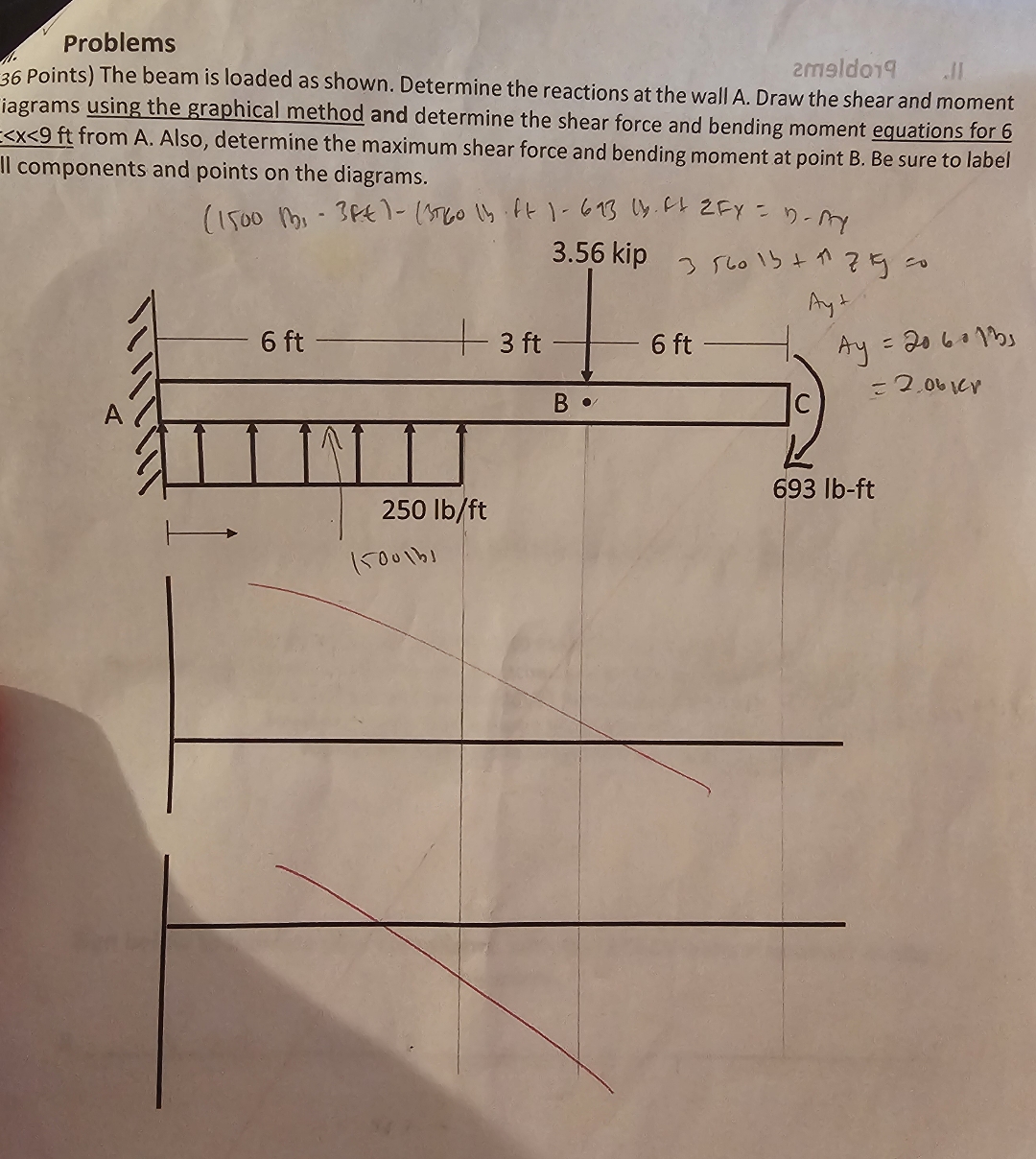

36 Points) The beam is loaded as shown. Determine the reactions at the wall A. Draw the shear and moment
iagrams using the graphical method and determine the shear force and bending moment equations for 6
x9ft from A. Also, determine the maximum shear force and bending moment at point B. Be sure to label
Il components and points on the diagrams.
Problems 3 6 Points ) The beam is loaded as

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
