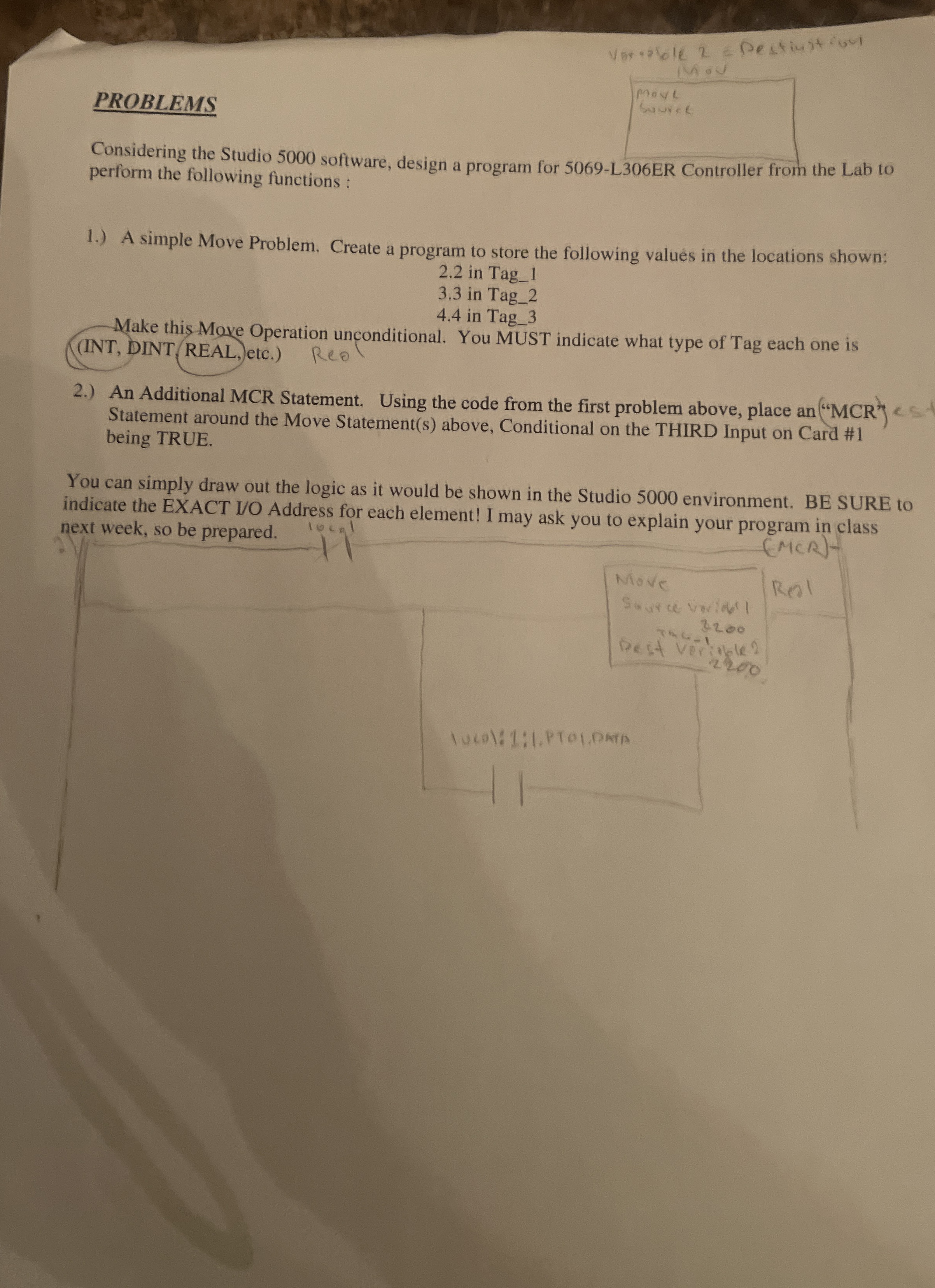

PROBLEMS

Move

buntel

Considering the Studio $5000$ software, design a program for $5069-$L$306$ER Controller from the Lab to perform the following functions :

$1.)$ A simple Move Problem. Create a program to store the following values in the locations shown:

$2\mathrm{.}2inTa{g}_1$

$3\mathrm{.}3inTa{g}_2$

$4\mathrm{.}4inTa{g}_3$

Make this Move Operation unconditional. You MUST indicate what type of Tag each one is $($INT$,$ DINT REAL, etc.$)$

Reo

$2.)$ An Additional MCR Statement. Using the code from the first problem above, place an $("$MCR$")$ Statement around the Move Statement$($s$)$ above, Conditional on the THIRD Input on Card #$1$ being TRUE.

You can simply draw out the logic as it would be shown in the Studio $5000$ environment. BE SURE to indicate the EXACT I$/$O Address for each element! I may ask you to explain your program in class next week, so be prepared.
