Question: PROBLEMS Section 2 . 9 Orthogonal Concurrent Forces: Resultants and Components 2 . 3 Compute the vertical and horizontal components for each of the forces

PROBLEMS
Section 2.9 Orthogonal Concurrent Forces: Resultants and Components

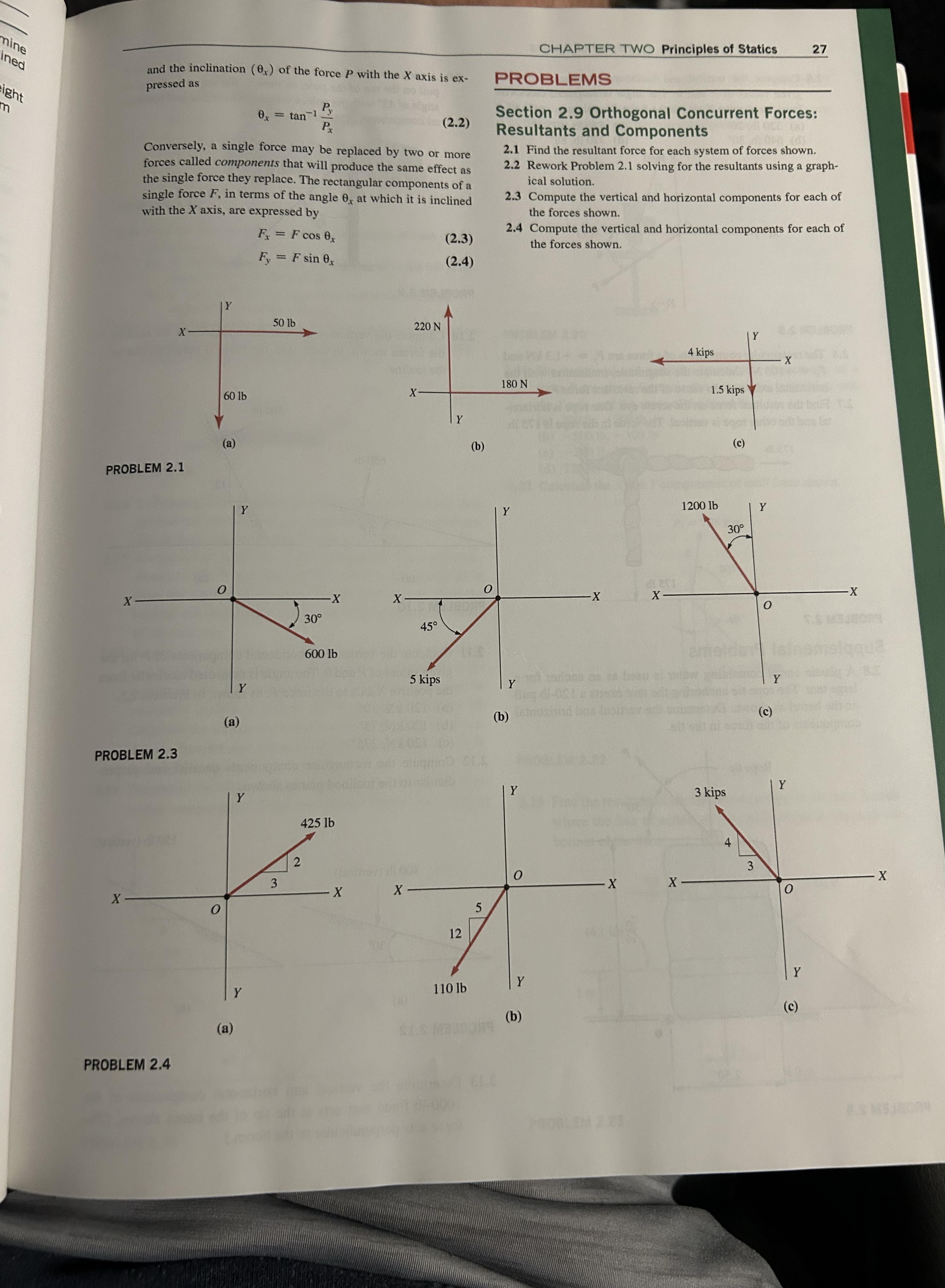

2.3 Compute the vertical and horizontal components for each of the forces shown.
2.4 Compute the vertical and horizontal components for each of the forces shown.
PROBLEMS Section 2 . 9 Orthogonal Concurrent

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
