Question: process control , quickly please ! The second order system given by: G(s)=16s2+16s+18 a. What kind of damping is prevalent in the process? Why? (5

process control , quickly please !

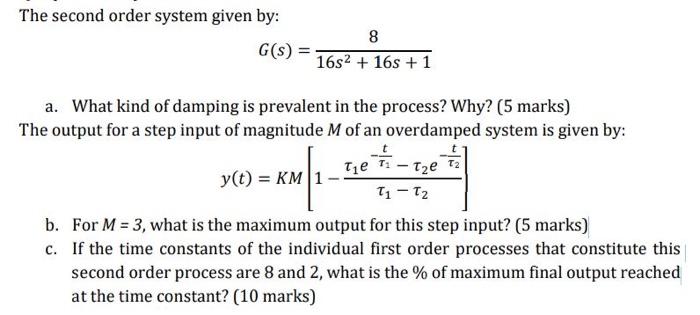

The second order system given by: G(s)=16s2+16s+18 a. What kind of damping is prevalent in the process? Why? (5 marks) The output for a step input of magnitude M of an overdamped system is given by: y(t)=KM[1121e1t2e2t] b. For M=3, what is the maximum output for this step input? (5 marks) c. If the time constants of the individual first order processes that constitute this second order process are 8 and 2 , what is the % of maximum final output reached at the time constant? ( 10 marks)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Chemical Engineering Questions!

Q1. (20 marks) The second order system given by: G(s)=16s2+16s+18 a. What kind of damping is prevalent in the process? Why? (5 marks) The output for a step input of magnitude M of an overdamped...

Q1. (30 marks) The second order system given by: G(s)=125s2+250s+510 a. What kind of damping is prevalent in the process? Why? ( 5 marks) b. What are the individual time constants of the first order...

process control , quickly please ! G(s)=36s2+10s+120 a. What kind of damping is prevalent here? Why? (5 marks) b. What is the time constant and damping coefficient of the 2nd order process shown...
