Question: Process controll instrumentation. Help me solve with proper handwritting solution. Please dont take answers from the other tutors. thanl you. have a nice day QUESTION

Process controll instrumentation. Help me solve with proper handwritting solution. Please

dont take answers from the other tutors. thanl you. have a nice

Process controll instrumentation. Help me solve with proper handwritting solution. Please dont take answers from the other tutors. thanl you. have a nice day

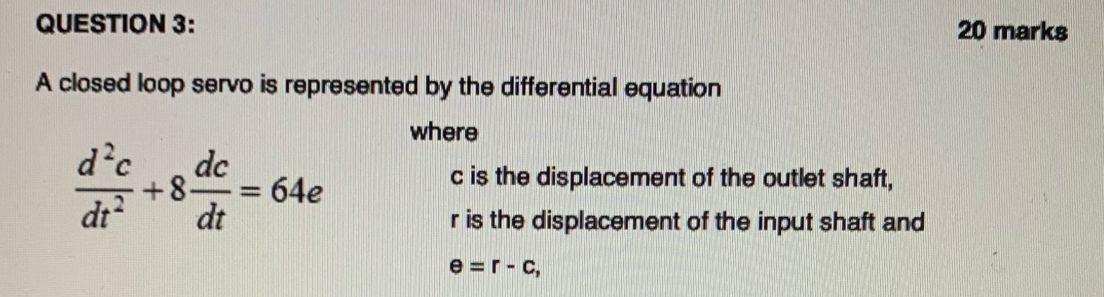

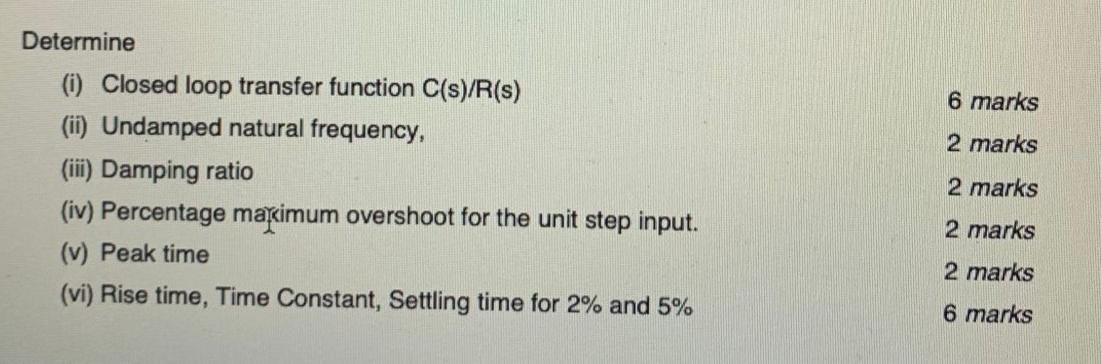

QUESTION 3: 20 marks A closed loop servo is represented by the differential equation where dc dc -8 -64e c is the displacement of the outlet shaft, dt? dt r is the displacement of the input shaft and e=r-C, 6 marks 2 marks Determine (i) Closed loop transfer function C(s)/R(s) (ii) Undamped natural frequency, (iii) Damping ratio (iv) Percentage maximum overshoot for the unit step input. (v) Peak time (vi) Rise time, Time Constant, Settling time for 2% and 5% 2 marks 2 marks 2 marks 6 marks

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
