Question: Produce a network diagram in Microsoft Word or Excel using the information from the table below. On the network diagram clearly show the early start,

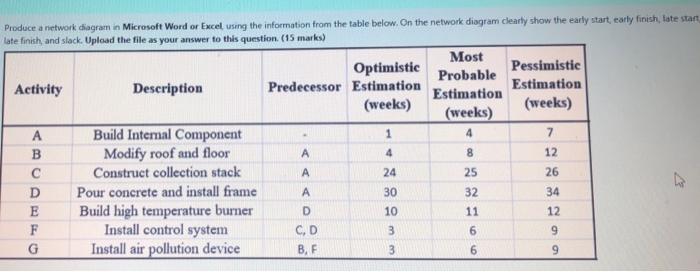

Produce a network diagram in Microsoft Word or Excel using the information from the table below. On the network diagram clearly show the early start, early finish, late start late finish, and slack. Upload the file as your answer to this question. (15 marks) Activity ABCDEFG Description Build Internal Component Modify roof and floor Construct collection stack Pour concrete and install frame Build high temperature burner Install control system Install air pollution device Optimistic Predecessor Estimation (weeks) A A A D C, D B, F 1 4 20103 3 24 Most Probable Estimation (weeks) 4 5266600 8 32 11 Pessimistic Estimation (weeks) 7 12 26 34 12 9 9
