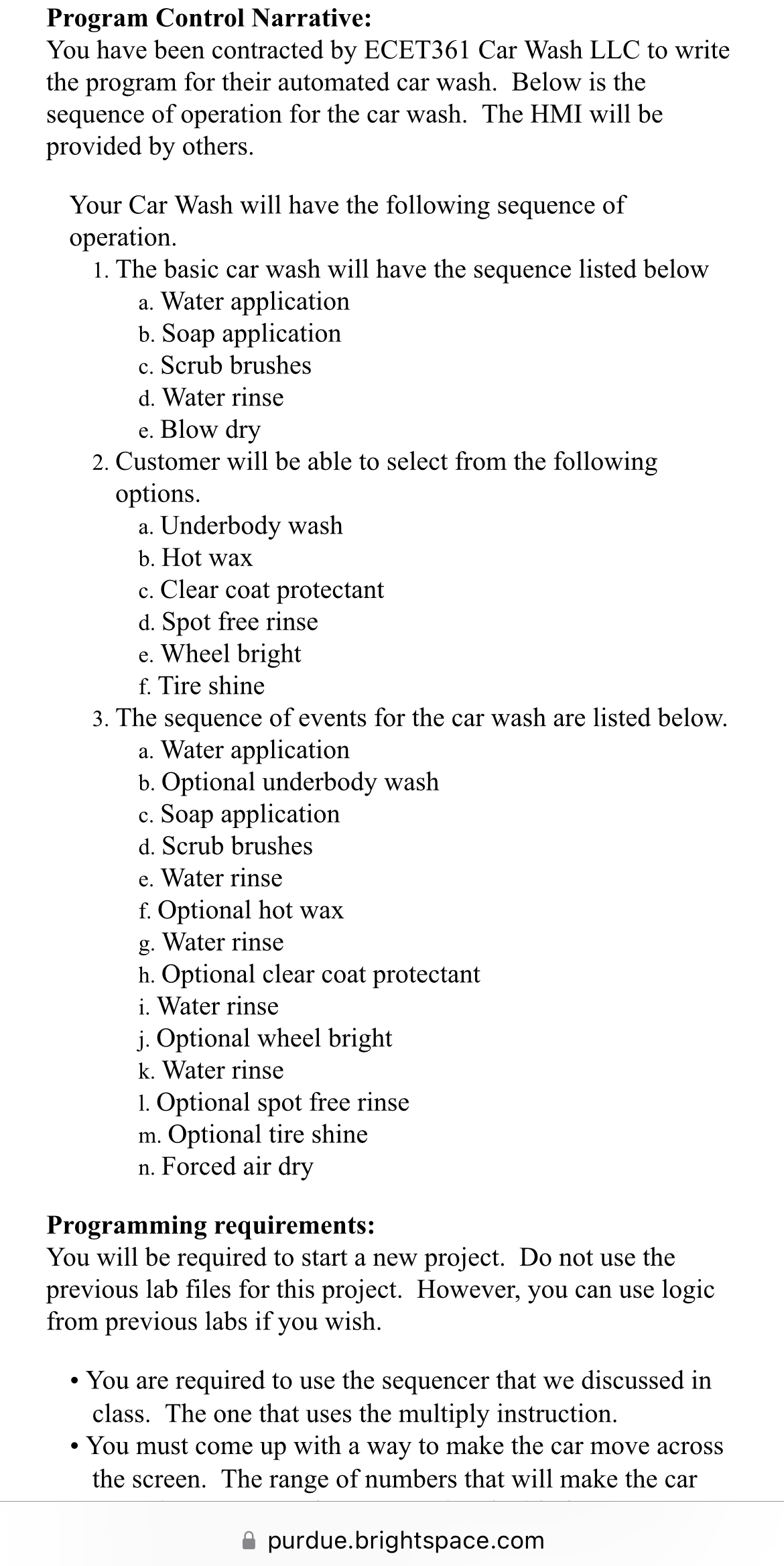

Program Control Narrative:

You have been contracted by ECET$361$ Car Wash LLC to write the program for their automated car wash. Below is the sequence of operation for the car wash. The HMI will be provided by others.

Your Car Wash will have the following sequence of operation.

The basic car wash will have the sequence listed below

a$.$ Water application

b$.$ Soap application

c$.$ Scrub brushes

d$.$ Water rinse

e$.$ Blow dry

Customer will be able to select from the following options.

a$.$ Underbody wash

b$.$ Hot wax

c$.$ Clear coat protectant

d$.$ Spot free rinse

e$.$ Wheel bright

f$.$ Tire shine

The sequence of events for the car wash are listed below.

a$.$ Water application

b$.$ Optional underbody wash

c$.$ Soap application

d$.$ Scrub brushes

e$.$ Water rinse

f$.$ Optional hot wax

g$.$ Water rinse

h$.$ Optional clear coat protectant

i$.$ Water rinse

j$.$ Optional wheel bright

k$.$ Water rinse

Optional spot free rinse

m$.$ Optional tire shine

n$.$ Forced air dry

Programming requirements:

You will be required to start a new project. Do not use the previous lab files for this project. However, you can use logic from previous labs if you wish.

You are required to use the sequencer that we discussed in class. The one that uses the multiply instruction.

You must come up with a way to make the car move across the screen. The range of numbers that will make the car
