Programming Project $4$

The fourth programming project involves writing a program to test the relationships between time intervals. The program should contain four classes. The first class should be a generic class Interval defined for any type that implements the Comparable interface. Objects of this type have a start and end of the generic type parameter that defines the start and end of the interval. The class should be immutable, so it should have no setter methods. At a minimum, it should contain the following public methods:

A constructor that accepts the start and end of an interval and constructs an Interval object

A method within that is supplied an object of the generic type parameter and returns whether that object is inside the interval, including the endpoints

A method subinterval that is passed an interval as a parameter and returns whether the interval parameter is a subinterval, completely within, the interval on which the method is invoked

A method overlaps that is passed an interval as a parameter and returns whether the interval parameter overlaps the interval on which the method is invoked

The second class Time should contain two integer instance variables that represent the hours and minutes and one additional variable for the meridian, AM or PM$.$ The class should implement the Comparable interface and should be immutable, so it should have no setter methods. At a minimum, it should contain the following public methods:

A constructor that accepts the hours and minutes as integers and the meridian as a string and constructs a Time object

A constructor that accepts a string representation of a time in the format HH:MM AM and constructs a Time object

A method comparero that compares two times and returns what is required of all such methods that implement the Comparable interface

A method tostring that returns the string representation of the time in the format

HH:MM AM HH:MM AM

When either constructor is called, several checks need to be made on the input. For both constructors, a check is needed to ensure that the hours and minutes are within range and that the meridian is AM or PM$.$ For the constructor that accepts the string representation, additional checks are needed to ensure that the hours and minutes are numeric values. Should any check fail, an exception InvalidT ime should be thrown that includes the reason.

The third class is the exception class InvalidTime that implements a checked exception. It should have an instance variable of type string that saves the message and the following method:

A constructor that accepts the message as a string and constructs an InvalidTime object

The fourth class project $4$ should implement a GUI interface that contains two buttons. The first button CompareIntervals should compare the two intervals and output one of the following messages depending upon how the intervals compare:

Interval $1$ is a sub$-$interval of interval $2$

Interval $2$ is a sub$-$interval of interval $1$

The intervals overlap

The intervals are disjoint

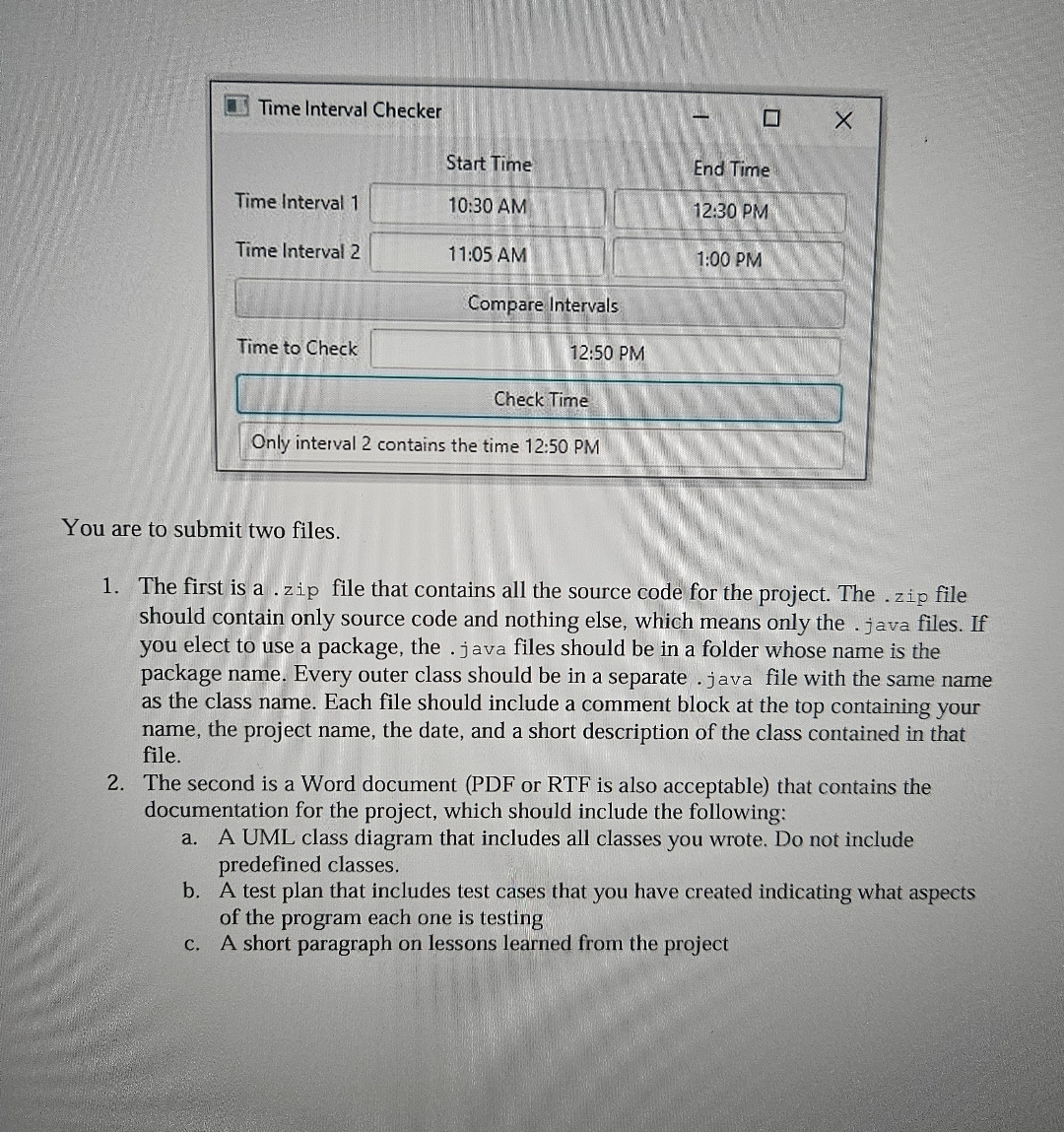

Shown below is an example of the output when the CompareIntervals button is clicked:

The second button CheckTime should check whether the time is within the intervals and output one of the following messages depending upon which intervals it is within:

Both intervals contains the time HH:MM AM

Only interval $1$ contains the time HH:MM AM

Only interval $2$ contains the time HH:MM AM

Neither interval contains the time HH:MM AM

Shown below is an example of the output when the CheckTime button is clicked:

$\backslash$table$[[(1)$ Time Interval,,$-,$
