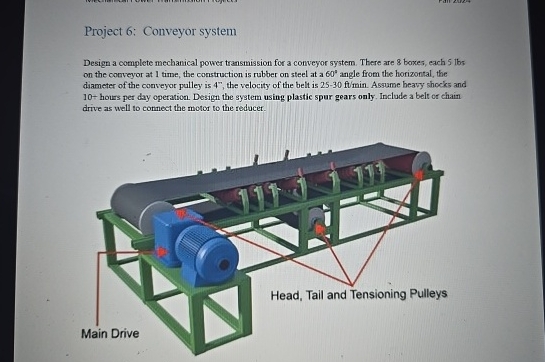

Question: Project 6 : Conveyor system Design a complete mechanical power transmission for a conveyor system. There are 8 boxes, each 5 lbs on the conveyor
Project : Conveyor system
Design a complete mechanical power transmission for a conveyor system. There are boxes, each lbs on the conveyor at time, the construction is rubber on steel at a angle from the horizontal, the diameter of the conveyor pulley is the velocity of the belt is Assume heavy shocks and hours per day operation. Design the system using plastic spur gears only. Include a belt or chain drive as well to connect the motor to the reducer.
