Provide Missing components and Missing connections in Problem13.sdl. Circuits have been provided

$----------------------------------------

$ Dr.S

$ Problem #13

$ Problem13.sdl

$----------------------------------------

COMPONENTS

LATCH showHexDigits

PROVIDE missing components

ALIASES

$ 4-bit code

B0 = IN#1

B1 = IN#2

B2 = IN#3

B3 = IN#4

$ segments

SEG1 = OUT#1

SEG2 = OUT#2

SEG3 = OUT#3

SEG4 = OUT#4

SEG5 = OUT#5

SEG6 = OUT#6

SEG7 = OUT#7

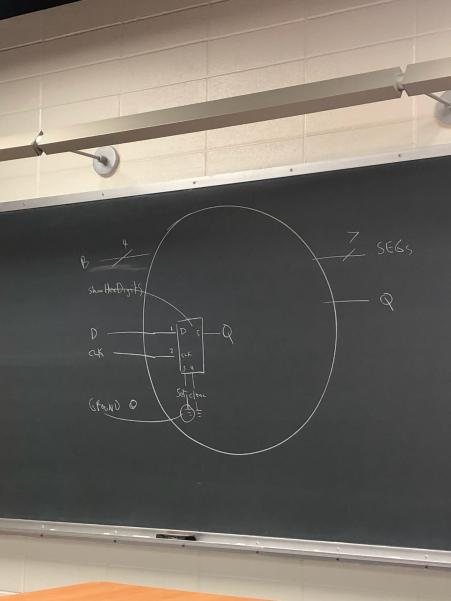

$ showHexDigits latch

D = IN#5

CK = IN#6

Q = OUT#8

CONNECTIONS

$ showHexDigits latch

showHexDigits#1 - D

showHexDigits#2 - CK

showHexDigits#3 - GROUND

showHexDigits#4 - GROUND

showHexDigits#5 - Q

PROVIDE missing connections

END

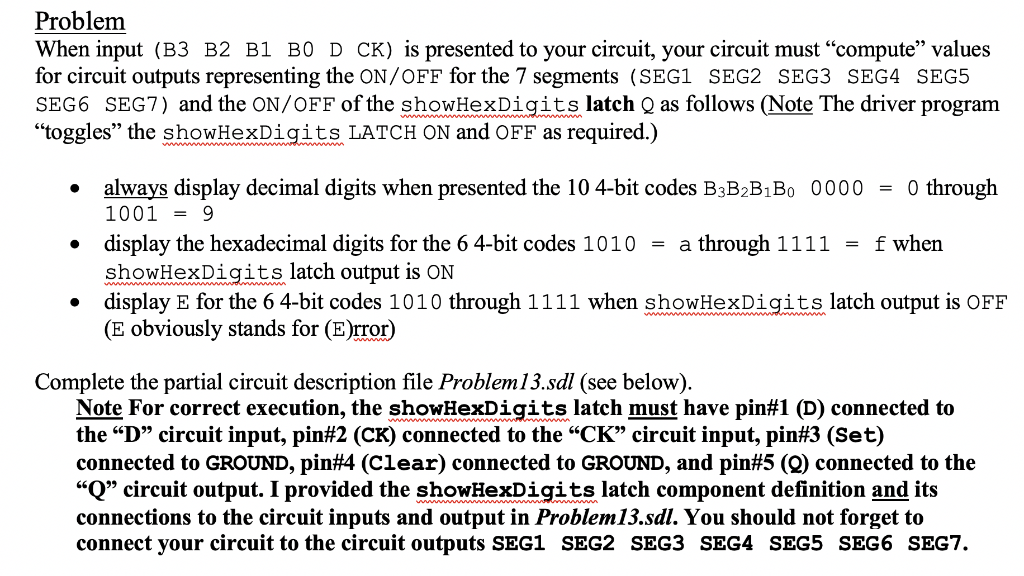

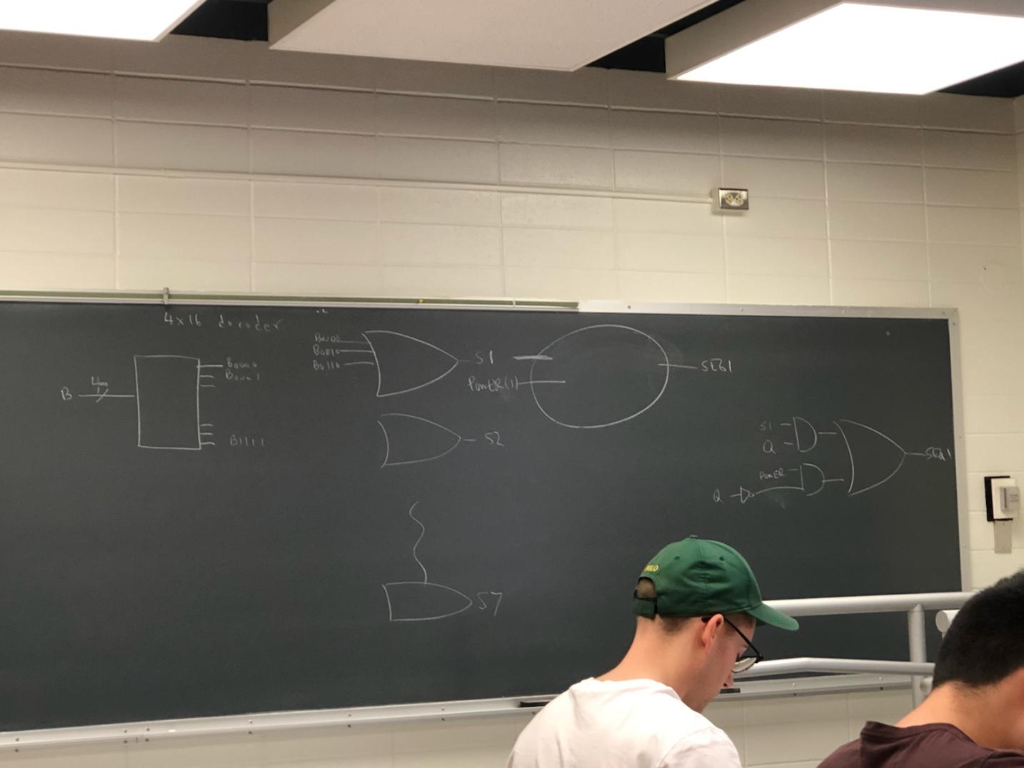

Problem When input (B3 B2 B1 BO D CK) 1s presented to your circuit, your circuit must "compute" values for circuit outputs representing the ON/OFF for the 7 segments (SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7) and the ON/OFF of the showHexDigits latch Q as follows (Note The driver program "toggles" the showHexDigits LATCH ON and OFF as required.,) . always display decimal digits when presented the 10 4-bit codes B3B2B1Bo 0000 -0 through * display the hexadecimal digits for the 6 4-bit codes 1010 - a through 1111 - f when * display E for the 6 4-bit codes 1010 through 1111 when showHeigits latch output is OFF 1001- 9 showHexDiqits latch output is ON (E obviously stands for (E)rror) Complete the partial circuit description file Problem13.sdl (see below) Note For correct execution, the showHexDigits latch must have pin#1 (D) connected to the "D" circuit input, pin#2 (CK) connected to the "CK', circuit input, pin#3 (Set) connected to GROUND, pin#4 (Clear) connected to GROUND, and pin#5 (Q) connected to the , circuit output. I provided the showHexDigits latch component definition and its connections to the circuit inputs and output in Problem13.sdl. You should not forget to connect your circuit to the circuit outputs SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7. SES Problem When input (B3 B2 B1 BO D CK) 1s presented to your circuit, your circuit must "compute" values for circuit outputs representing the ON/OFF for the 7 segments (SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7) and the ON/OFF of the showHexDigits latch Q as follows (Note The driver program "toggles" the showHexDigits LATCH ON and OFF as required.,) . always display decimal digits when presented the 10 4-bit codes B3B2B1Bo 0000 -0 through * display the hexadecimal digits for the 6 4-bit codes 1010 - a through 1111 - f when * display E for the 6 4-bit codes 1010 through 1111 when showHeigits latch output is OFF 1001- 9 showHexDiqits latch output is ON (E obviously stands for (E)rror) Complete the partial circuit description file Problem13.sdl (see below) Note For correct execution, the showHexDigits latch must have pin#1 (D) connected to the "D" circuit input, pin#2 (CK) connected to the "CK', circuit input, pin#3 (Set) connected to GROUND, pin#4 (Clear) connected to GROUND, and pin#5 (Q) connected to the , circuit output. I provided the showHexDigits latch component definition and its connections to the circuit inputs and output in Problem13.sdl. You should not forget to connect your circuit to the circuit outputs SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7. SES
