Question: pts) Using the Node-Voltage Method: (a) Find vO,vX,ix and i0. (b) Calculate power for all sources and specify whether they generate or absorb power. (c)

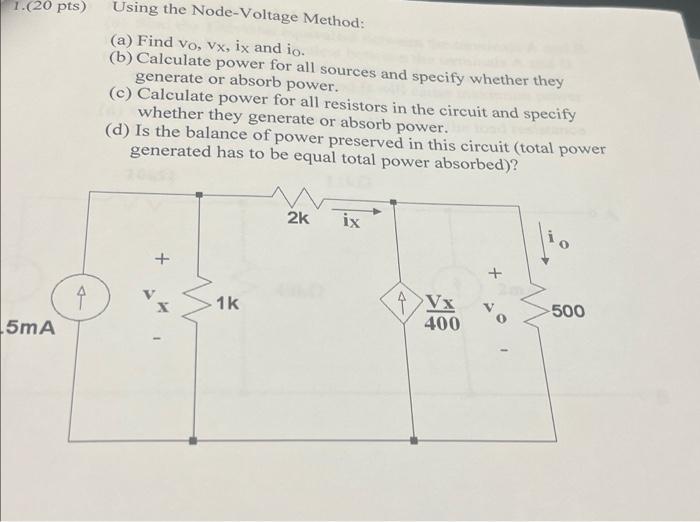

pts) Using the Node-Voltage Method: (a) Find vO,vX,ix and i0. (b) Calculate power for all sources and specify whether they generate or absorb power. (c) Calculate power for all resistors in the circuit and specify whether they generate or absorb power. (d) Is the balance of power preserved in this circuit (total power generated has to be equal total power absorbed)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
