[PYTHON] Given the code below:

# Data and Labels X = np.array([[1,8],[7,2],[6,-1],[-5,0], [-5,1], [-5,2],[6,3],[6,1],[5,2]]) y = np.array([1,-1,-1,1,-1,1,1,-1,-1])

# Support vector parameters w, b = np.array([-1/4, 1/4]), -1/4

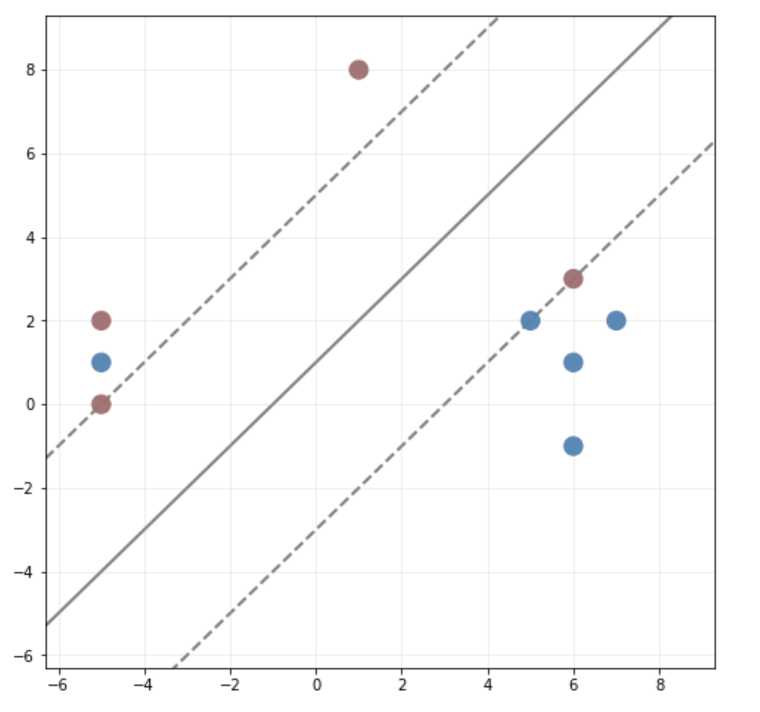

# Plot the data and support vector boundaries linear_plot(X, y, w=w, b=b)

ATTENTION: Do not change the original codes, just complete them.

TO DO:

1. What is the margin of this particular SVM?

margin = 0 # update margin to be a correct number

# your code here

2. Which training examples are the support vectors? Assign the coordinate in the list. e.g. support_vectors = [(1,0),(0,0)]

# your code here

# support_vectors=[(1,0),(0,0)]

3. Explain your answer for which training examples are support vectors. For the support vectors that you have identified, which are the in-bound support vectors and which are the out-bound support vectors?

4. Which training examples have nonzero slack? List their coordinates.

nonzero_slack=[] # your code here

5. How did you know which training examples had nonzero slack?

6. Compute the slack associated with the misclassified points.

# your code here

# compute the slack associated with the misclassified points # return a list slacks with the slack computations # slacks = [slack1, slack2] # slack1 = # slack2 = print(slacks)

-----------------------------
