Question: Q 1 ) ( 3 0 P ) Determine the maximum positive moment created at point B in the beam shown in the figure below

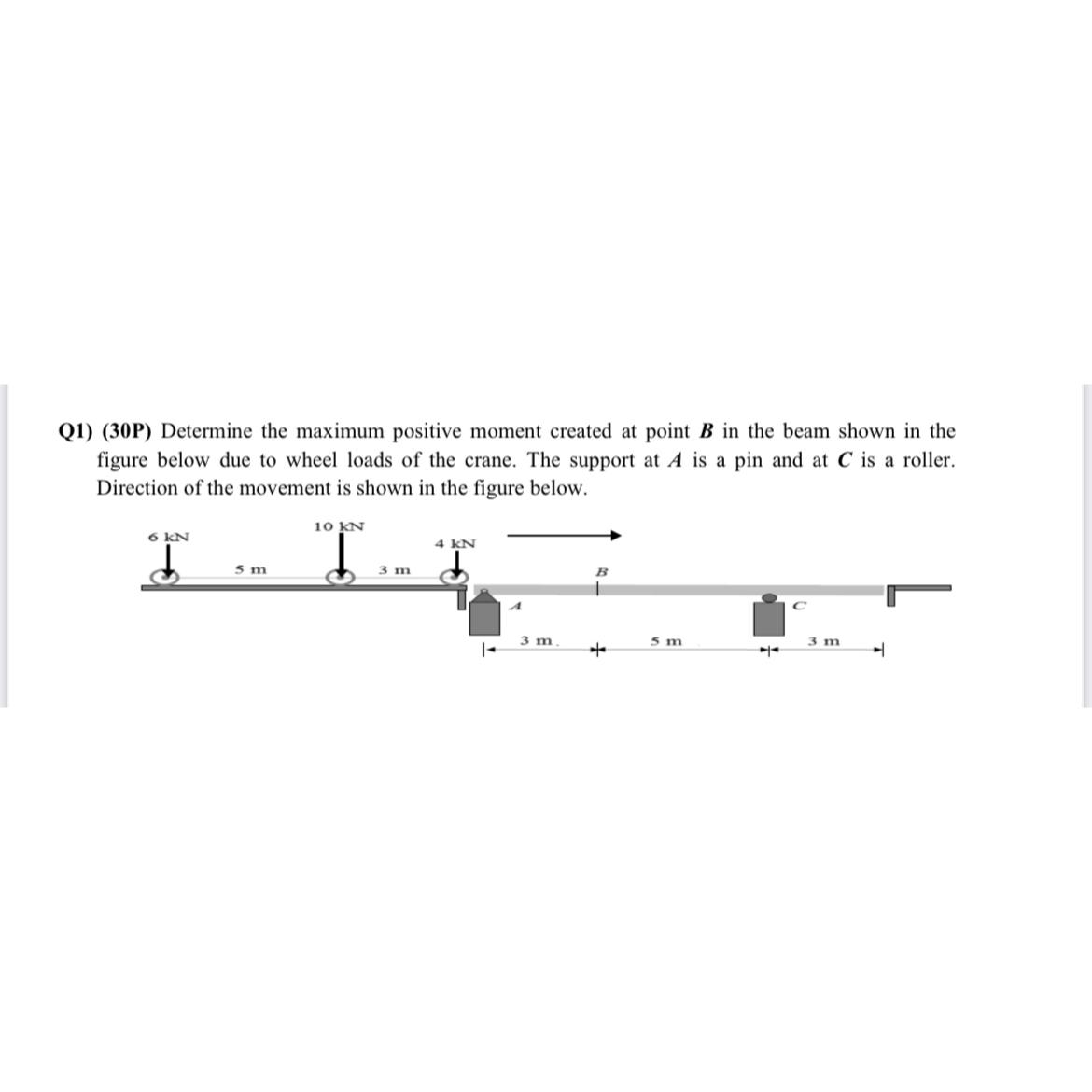

Q1)(30P) Determine the maximum positive moment created at point B in the beam shown in the figure below due to wheel loads of the crane. The support at A is a pin and C is a roller. Direction of the movement is shown in the figure below.
