Question: Q 1 . A rectangular slab is subjected to uniform distributed area load of 2 0 k N m 2 . Determine the support and

Q1. A rectangular slab is subjected to uniform distributed area load of 20kNm2. Determine the support and field moments for the slab (see figure 1) using yield line analysis. Assume isotropic reinforcement distribution.
(25 marks)

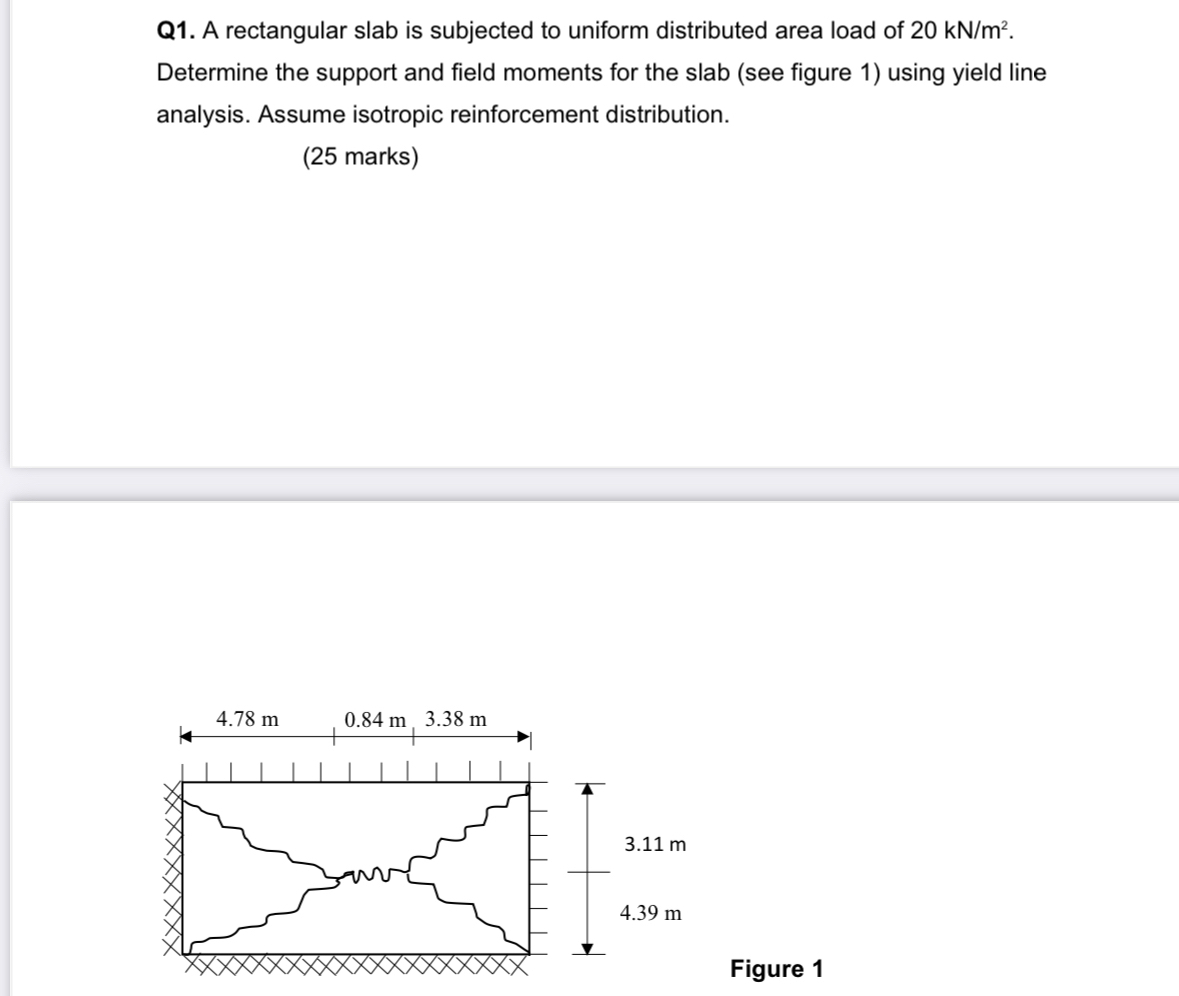

Figure 1
