Question: Q 1 : Consider the RC circuit shown below, which is being driven by a function generator supplying a voltage of V i n (

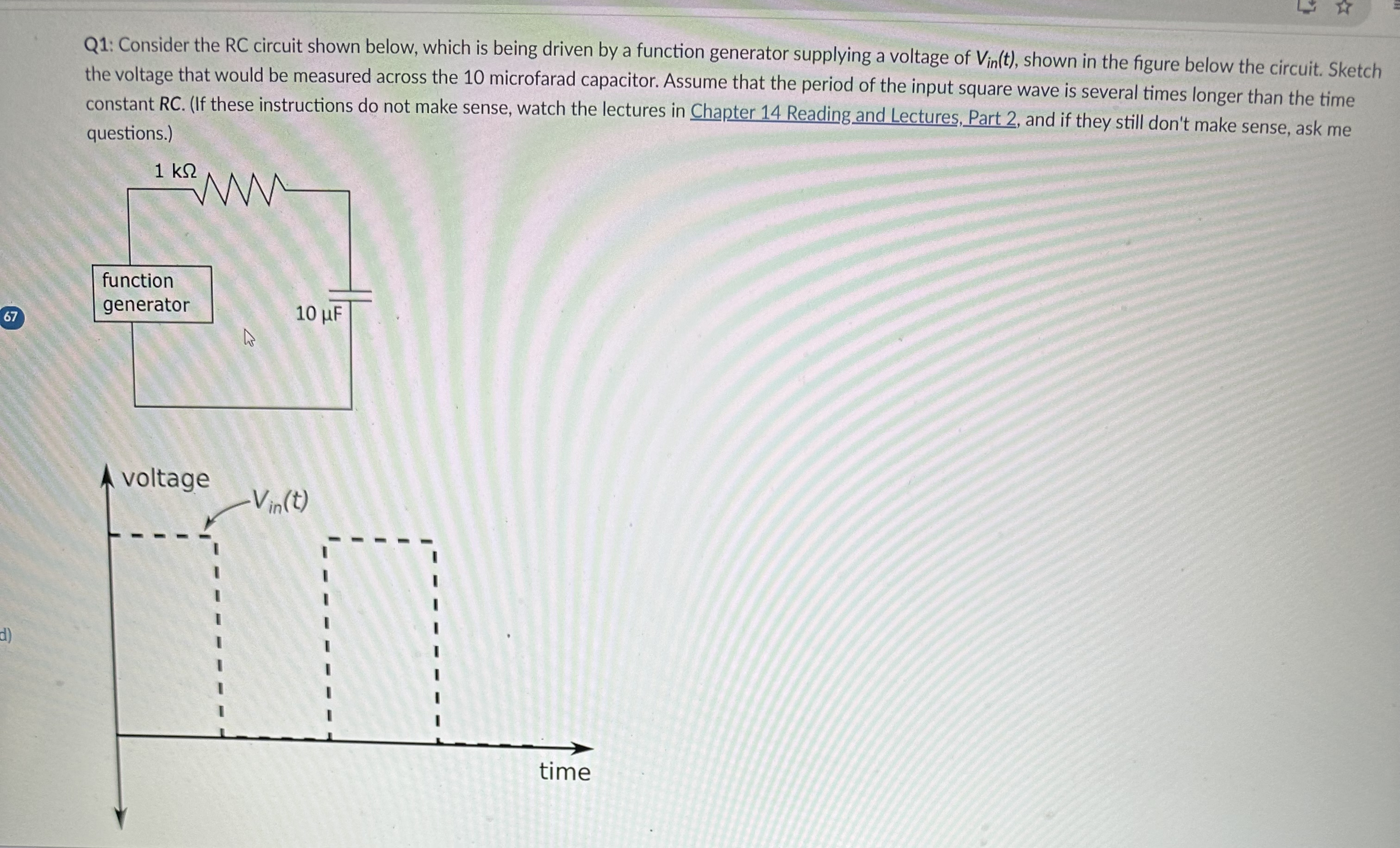

Q1: Consider the RC circuit shown below, which is being driven by a function generator supplying a voltage of Vin(t), shown in the figure below the circuit. Sketch the voltage that would be measured across the 10 microfarad capacitor. Assume that the period of the input square wave is several times longer than the time constant RC.(If these instructions do not make sense, watch the lectures in Chapter 14 Reading and Lectures, Part 2, and if they still don't make sense, ask me questions.)
Q 1 : Consider the RC circuit shown below, which

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
