Question: Q 1 . Determine the force in member ( A C ) of the truss. Axial rigidity ( E A )

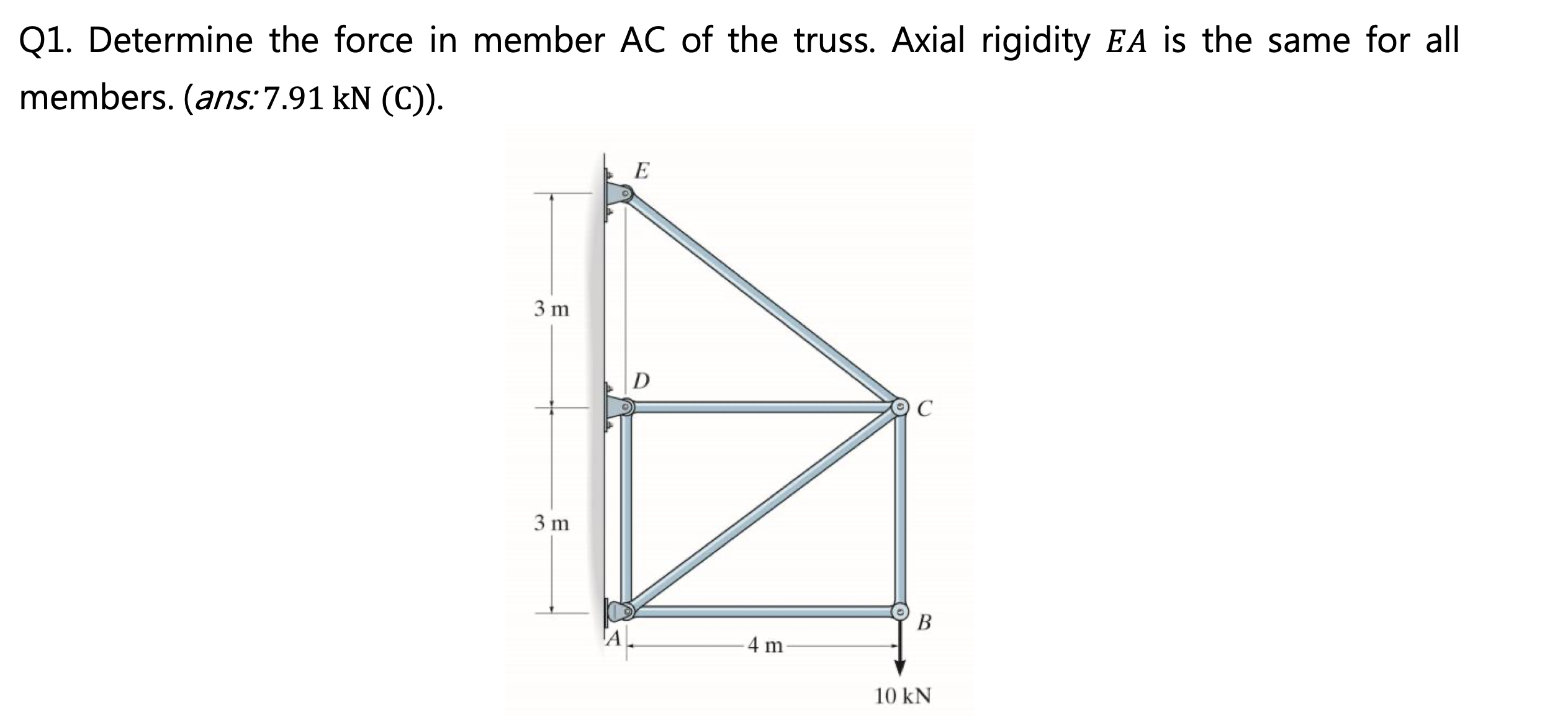

Q1. Determine the force in member \( A C \) of the truss. Axial rigidity \( E A \) is the same for all members. (ans: 7.91 kN (C)). show me the steps please
Q 1 . Determine the force in member \ ( A C \ )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
