Question: Q 1 / For the truss shown in Fig. ( 1 ) : 1 - Determine the type of the truss. 2 - If the

Q1/ For the truss shown in Fig.(1):
1- Determine the type of the truss.
2- If the truss is made of a material that has maximum allowable force 2.5 kN in tension and 1.75 kN in compression, determine the largest load P that can be applied to that truss.

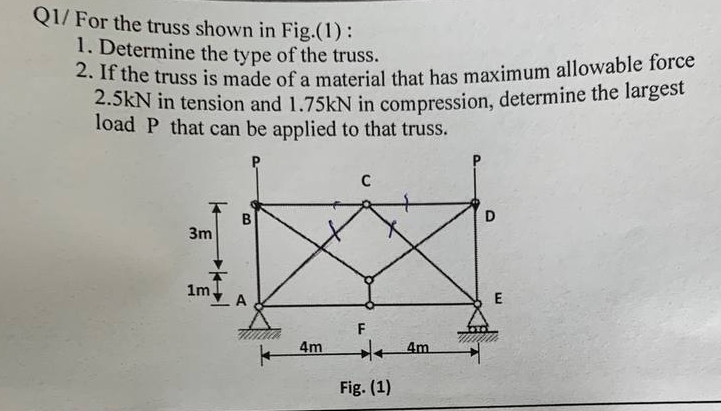

Fig. (1)
Q 1 / For the truss shown in Fig. ( 1 ) : 1 -

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
