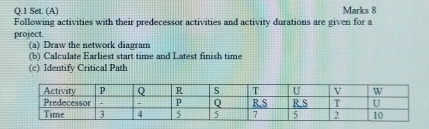

Q$.1$ Set. $($A$)$

Marks $8$

Following activities with their predecessor activities and activity durations are given for a project.

$($a$)$ Draw the network diagram

$($b$)$ Calculate Earliest start time and Latest finish time

$($c$)$ Identify Critical Path

$\backslash$table$[[$Activity$,$P$,$Q$,$R$,$S$,$T$,$U$,$V$,$W$],[$Predecessor$,-,-,$P$,$Q$,$RS$,$R$.$S$,$T$,$U$],[$Time$,3,4,5,5,7,5,2,10]]$
