Q$-1$

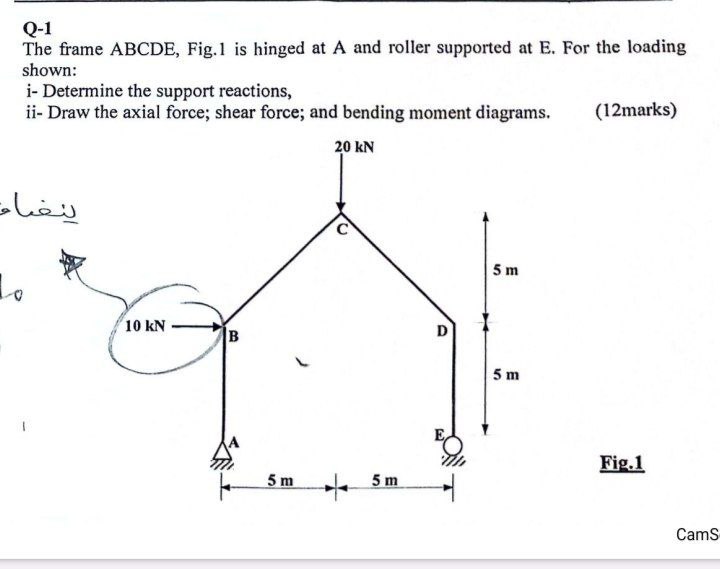

The frame ABCDE, Fig. $1$ is hinged at A and roller supported at E$.$ For the loading

shown:

i$-$ Determine the support reactions,

ii$-$ Draw the axial force; shear force; and bending moment diagrams.

$(12$marks$)$

Fig. $1$
