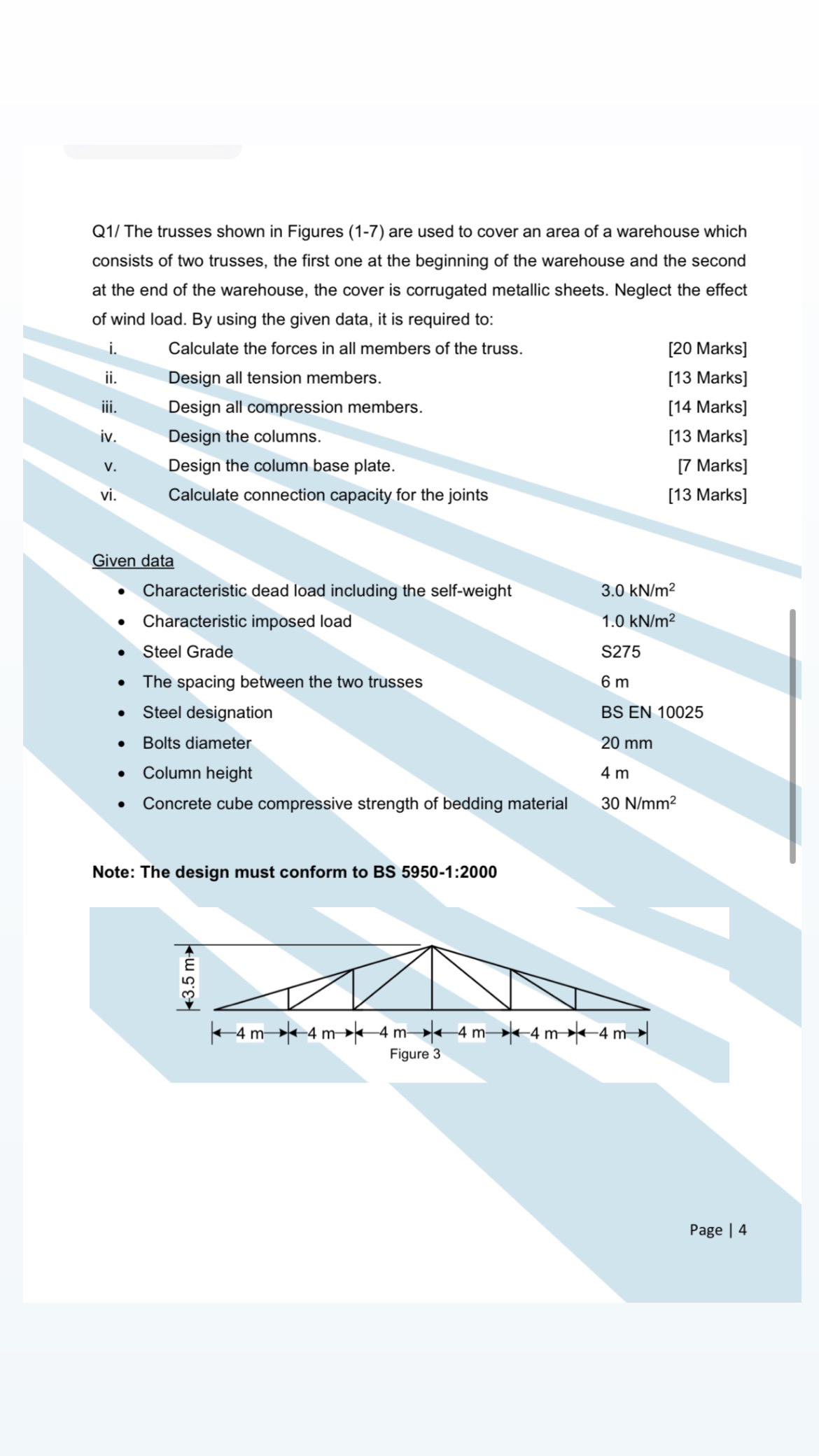

Q$1/$ The trusses shown in Figures $(1-7)$ are used to cover an area of a warehouse which consists of two trusses, the first one at the beginning of the warehouse and the second at the end of the warehouse, the cover is corrugated metallic sheets. Neglect the effect of wind load. By using the given data, it is required to:

i$.$ Calculate the forces in all members of the truss.

$[20$ Marks$]$

ii$.$ Design all tension members.

$[13$ Marks$]$

iii. Design all compression members.

$[14$ Marks$]$

iv$.$ Design the columns.

$[13$ Marks$]$

v$.$ Design the column base plate.

$[7$ Marks$]$

vi$.$ Calculate connection capacity for the joints

$[13$ Marks$]$

Given data

Characteristic dead load including the self$-$weight

Characteristic imposed load

Steel Grade

The spacing between the two trusses

Steel designation

Bolts diameter

Column height

Concrete cube compressive strength of bedding material

$3\mathrm{.}0$ kN$/$m$^2$

$1\mathrm{.}0k\frac{N}{m^2}$

S$275$

$6$ m

BS EN $10025$

$20$ mm

$4$ m

$30\frac{N}{m}{m}^2$

Note: The design must conform to BS $5950-1$:$2000$

Figure $3$

Page $|4$
