Question: Q 2 ( 3 0 p ) For the given microprocessor below, your are asked to fill in the table with the values of the

2 (30

)

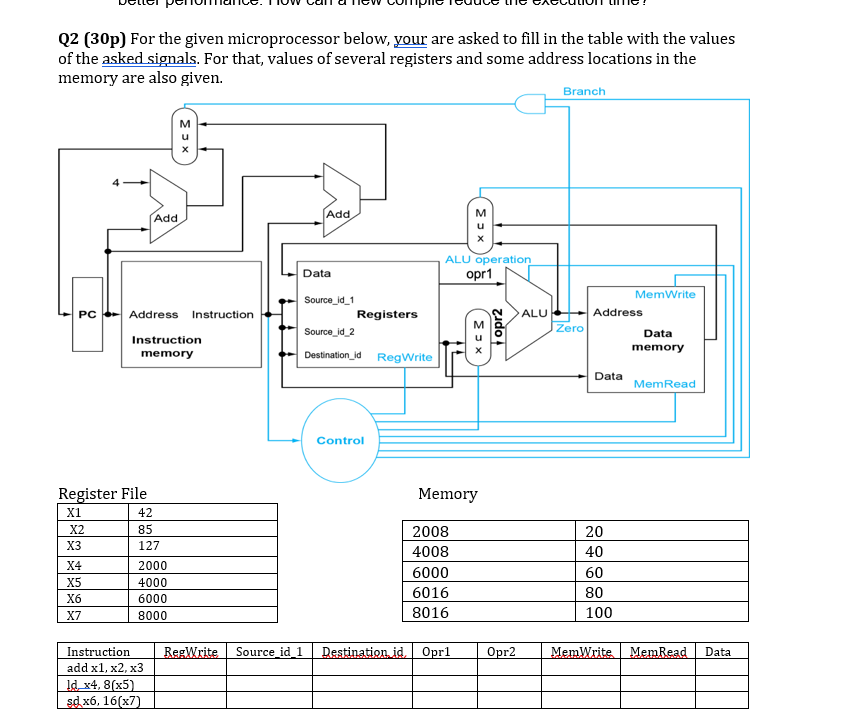

For the given microprocessor below, your are asked to fill in the table with the values of the asked signals. For that, values of several registers and some address locations in the memory are also given.

Q 2 ( 3 0 p ) For the given microprocessor below,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
