Question: Q 2 ( 4 points ) Determine the pressure drop that the pump in the diagram must overcome if the flow rate is 1 1

Q2(4 points)

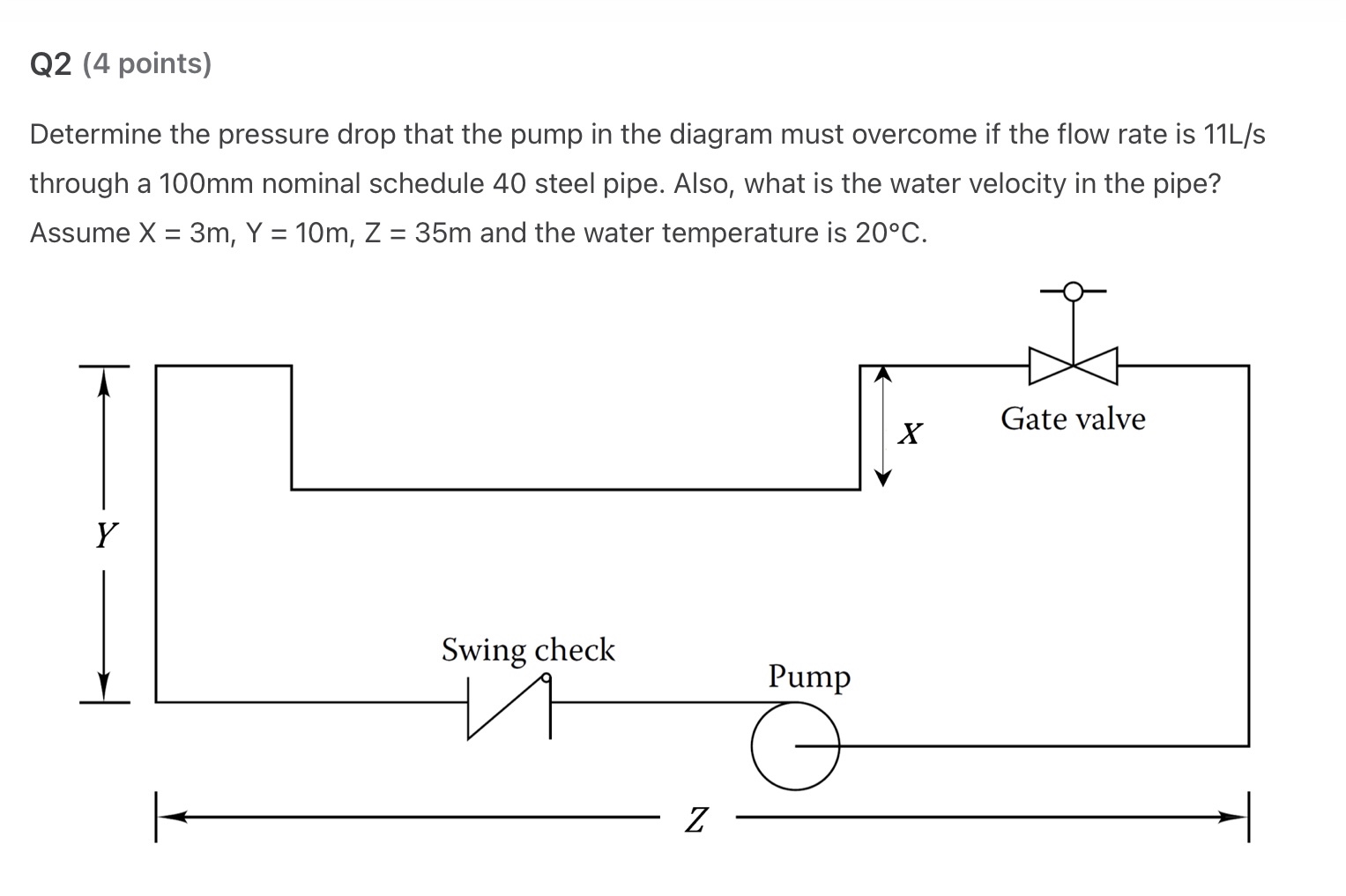

Determine the pressure drop that the pump in the diagram must overcome if the flow rate is 11Ls through a 100 mm nominal schedule 40 steel pipe. Also, what is the water velocity in the pipe?
Assume x=3m,Y=10m,Z=35m and the water temperature is 20C.
Q 2 ( 4 points ) Determine the pressure drop that
