Question: Q 2 : A hollow beam has a rectangular cross section. Determine the point experiencing the maximum shear force. What is the maximum allowable shear

Q2:

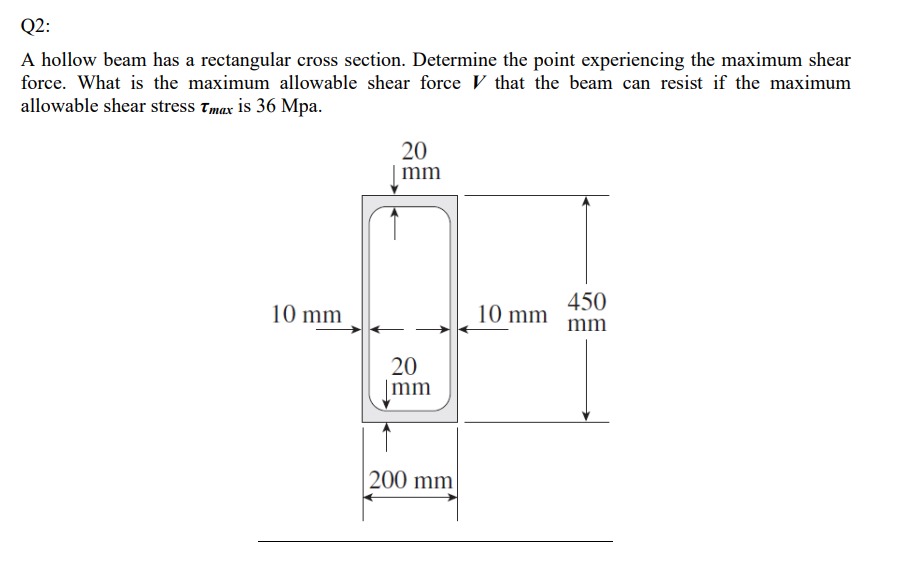

A hollow beam has a rectangular cross section. Determine the point experiencing the maximum shear force. What is the maximum allowable shear force V that the beam can resist if the maximum allowable shear stress max is 36Mpa.
Q 2 : A hollow beam has a rectangular cross

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

A hollow beam has a rectangular cross section. Determine the point experiencing the maximum shear force. What is the maximum allowable shear force

Q:

A hollow steel box beam has the rectangular cross section shown in the figure. Determine the maximum allowable shear force V that may act on the beam if the allowable shear stress in 36 Mpa. 20 450...

Q:

allu Could you help me solve the beam and column??? 1) A beam with concrete y = 24 kN/m* (specific weight), has a distributed load uniform (Consider the self-weight of the beam and the applied load)...

Q:

1) The beam shown below has a rectangular cross section. Determine the maximum bending stress and shear stress that occur in the beam. (40 points) Ts V @ It A 4 m 20 kN 10 kN B 0.4 m 6m 0.5m Notes:...

Q:

A hollow cylindrical shaft with an outer diameter of 1 0 0 mm and an inner diameter of 8 0 mm is subjected to a bending moment of 1 2 0 0 Nm and a torque of 1 0 0 0 Nm . Determine the principal...

Q:

The beam AE is a hollow rectangular cross section ( dimensions shown below ) and is supported by a roller at B and a pin at D . For the loading shown: a ) Draw the shear and bending moment diagrams....

Q:

Question 1 The beam of rectangular cross-section of Figure 1.1 is subjected to the bending moment 40 MNmm and the maximum shear force 150 kN. The maximum bending and shear stresses in the beam are...

Q:

(a) A beam ABCD shown in Fig. Q1(a) is subjected to combined loads of a uniformly distributed load q of 4 kN/m over region AB and a specific bending moment Mo of 2 kNm at Section C. It has a...

Q:

The beam in the figure below is fabricated by attaching a C180x14.6 channel to a W250x179 shape with 15-mm-dia rivets at uniform spacing "s". The maximum shear force in the beam is 65 kN. Given...

Q:

A beam of rectangular cross section is simply supported at the ends and subject to the single concentrated force shown below. Determine the shearing stress at a point 3 cm below the top of the beam...
