Question: Q 2 . A horizontal bar A B is supported by a pinned - end column C D as shown in the figure. The column

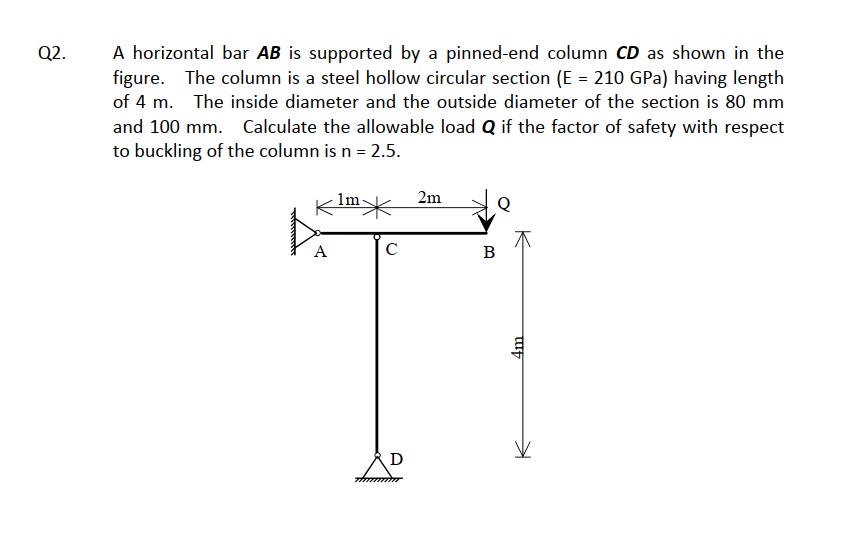

Q2. A horizontal bar AB is supported by a pinned-end column CD as shown in the figure. The column is a steel hollow circular section (E=210GPa ) having length of 4m. The inside diameter and the outside diameter of the section is 80mm and 100mm. Calculate the allowable load Q if the factor of safety with respect to buckling of the column is n=2.5.
Q 2 . A horizontal bar A B is supported by a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
