Question: Q 2 . ( score 3 0 ) Replace the forces and two couple moments, acting on the pipe assembly, by an equivalent resultant force

Q2.(score 30)

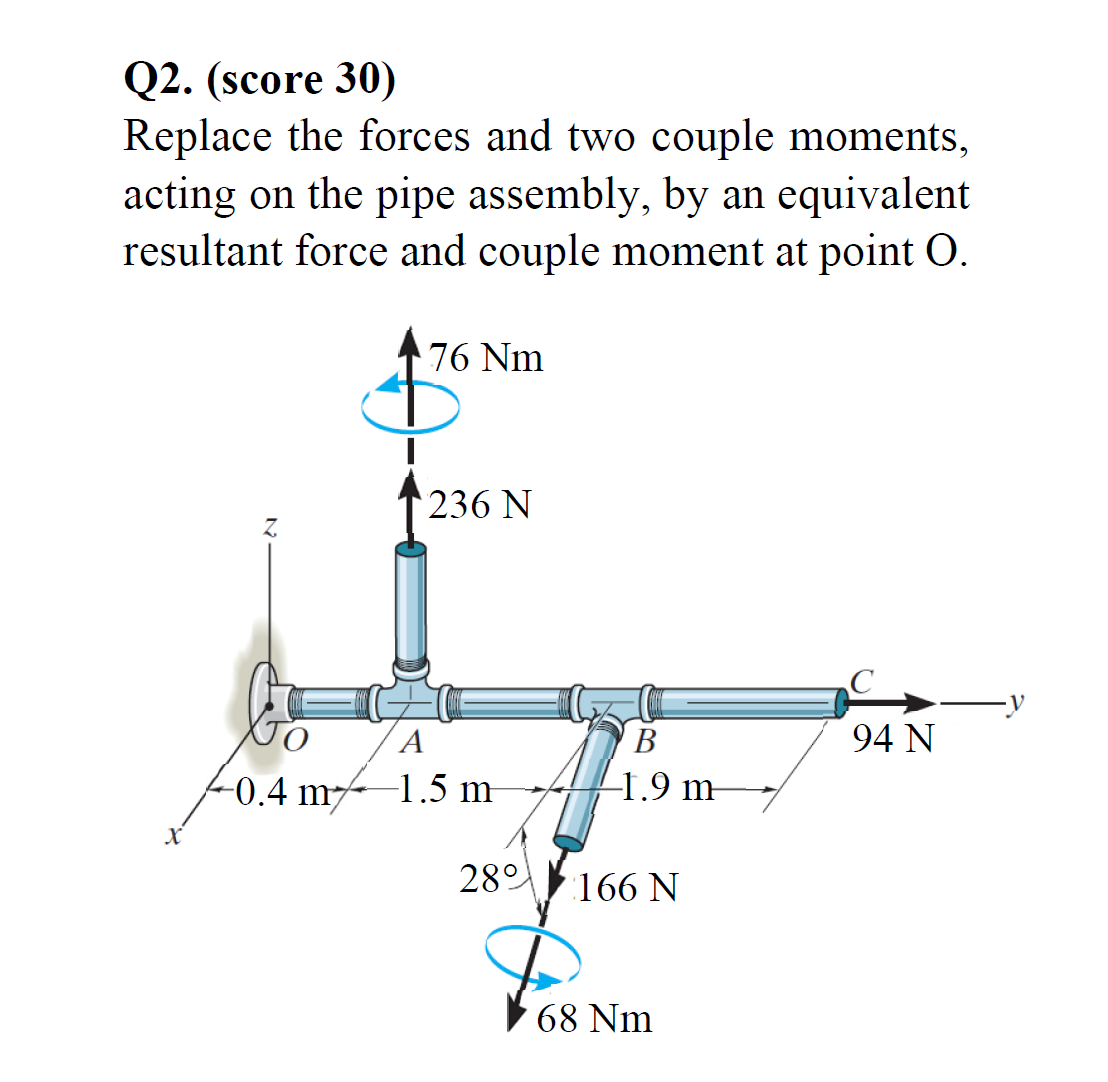

Replace the forces and two couple moments, acting on the pipe assembly, by an equivalent resultant force and couple moment at point O.
Q 2 . ( score 3 0 ) Replace the forces and two

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Replace the loading by an equivalent resultant force and couple moment acting at point (Figure 1). Assume F = 400 N, F = 800 N, and Mc = 85 N. m. Part A Figure 0.3 m F 0.5 m 0.4 m Mc Determine the...

Q:

Correct In three of the cases, the hand only needs to exert a reaction force, but in case A the hands need to exert a couple moment to prevent the rod from rotating about his hand in the clockwise...

Q:

Part A Replace the loading system acting on the beam by an equivalent resultant force and couple moment at point O Suppose that F1 = 550 N , F2 = 200 N , and Determine the magnitude of the resultant...

Q:

2) Replace the force system acting on the beam by an equivalent resultant force and couple moment at Point A 3) Replace the force system acting on the beam by an equivalent resultant force and couple...

Q:

Handwritten solution required ,Don't copy?? CoursHeroTranscribedText: Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point O ....

Q:

Replace the force and couple moment system acting on the beam by an equivalent resultant force and couple moment at point A (Figure 1). Suppose that F = 660 N, F = 280 N, and M = 300 N. m. Determine...

Q:

Clearly show your work for each problem ( 2 problems and 1 bonus ) . Box your final solution ( make sure you use proper significant figures and include units ) . A 5 m beam ( AD ) is shown below with...

Q:

Question 2 Replace the loading system by an equivalent resultant force and couple moment acting at point A. Assume F1=4U N, F2=25 N and F3=55 N. (a) Determine the magnitude of the resultant force....

Q:

by an equivalent resultant force and couple moment at point O. 4-134. Replace the loading acting on the post by an equivalent resultant force and couple moment at point P. Probs. 4-133/134 30 1b PY 1...

Q:

Handle forces F1 and F2 are applied to the electric drill. Replace this system by an equivalent resultant force and couple moment acting at point O. Express the results in Cartesian vector form....
