Question: Q 2 . The loads shown are applied axially on the round bar that has a diameter of d = 5 0 m m ,

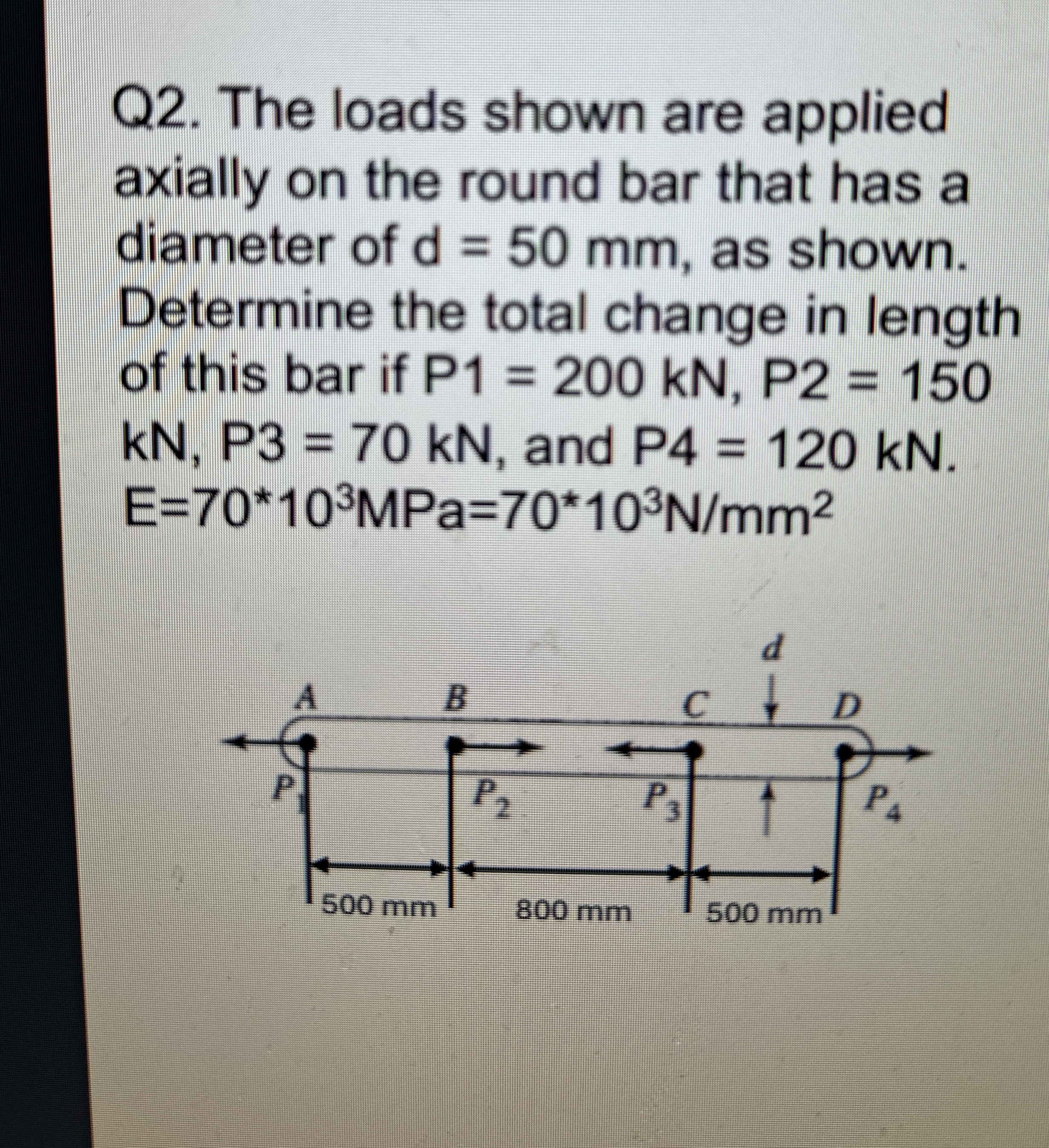

Q2. The loads shown are applied
axially on the round bar that has a
diameter of d=50mm, as shown.
Determine the total change in length
of this bar if P1=200kN,P2=150
kN,P3=70kN, and P4=120kN.
E=70*103MPa=70*103Nmm2
Q 2 . The loads shown are applied axially on the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
