Question: Q 2 : Use a flexibility method to determine the support reactions in the beam shown in Fig. 2 . Note ( 2 degrees -

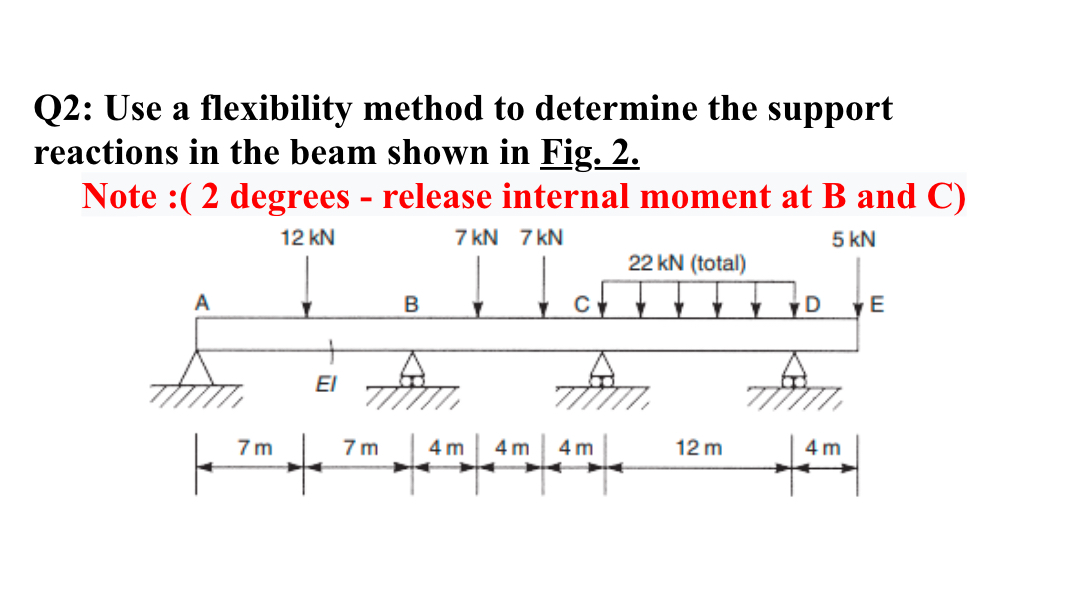

Q2: Use a flexibility method to determine the support reactions in the beam shown in Fig. 2.
Note (2 degrees - release internal moment at B and C)
Q 2 : Use a flexibility method to determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
