Question: Q - 3 ) ( 2 5 P ) A 1 5 0 - m - long equal tangent crest vertical curve connects tangents that

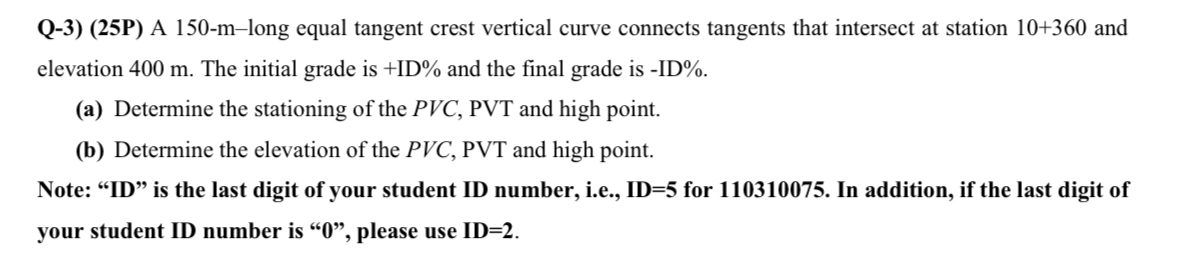

Q-3)(25P) A 150-m-long equal tangent crest vertical curve connects tangents that intersect at station 10+360 and elevation 400m. The initial grade is +ID% and the final grade is -ID2%.
(a) Determine the stationing of the PVC, PVT and high point.
(b) Determine the elevation of the PVC, PVT and high point.
Note: "ID" is the last digit of your student ID number, i.e., ID=5 for 110310075. In addition, if the last digit of your student ID number is "0", please use ID=2.
Q - 3 ) ( 2 5 P ) A 1 5 0 - m - long equal
