Question: Q 3 . A horizontal curve on a two - lane highway has a superelevation of 6 % and a central angle of 4 2

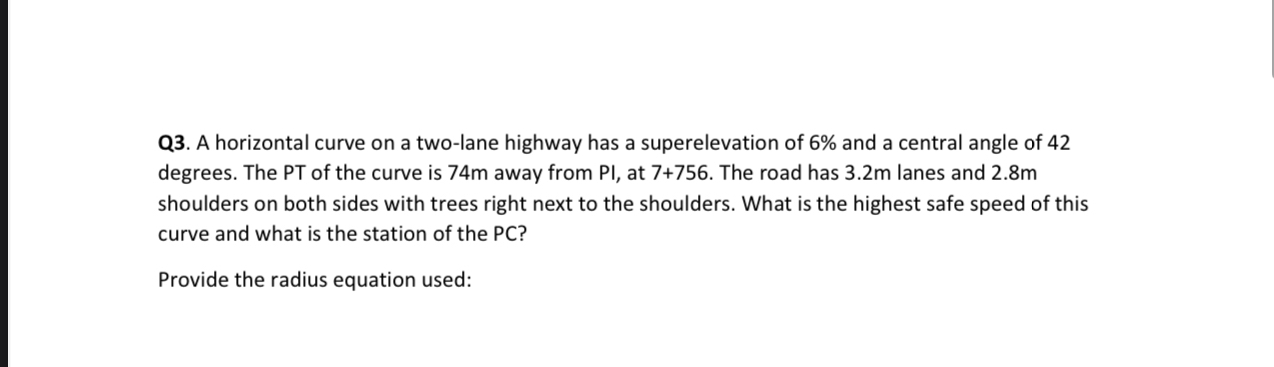

Q3. A horizontal curve on a two-lane highway has a superelevation of 6% and a central angle of 42 degrees. The PT of the curve is 74 m away from PI , at 7+756. The road has 3.2 m lanes and 2.8 m shoulders on both sides with trees right next to the shoulders. What is the highest safe speed of this curve and what is the station of the PC?
Provide the radius equation used:
Q 3 . A horizontal curve on a two - lane highway

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
