Question: Q 3 . Ideal Transformer ( 2 0 points ) Consider an ideal transformer without any losses. As shown in the following circuit, the turn

Q3. Ideal Transformer (20 points)

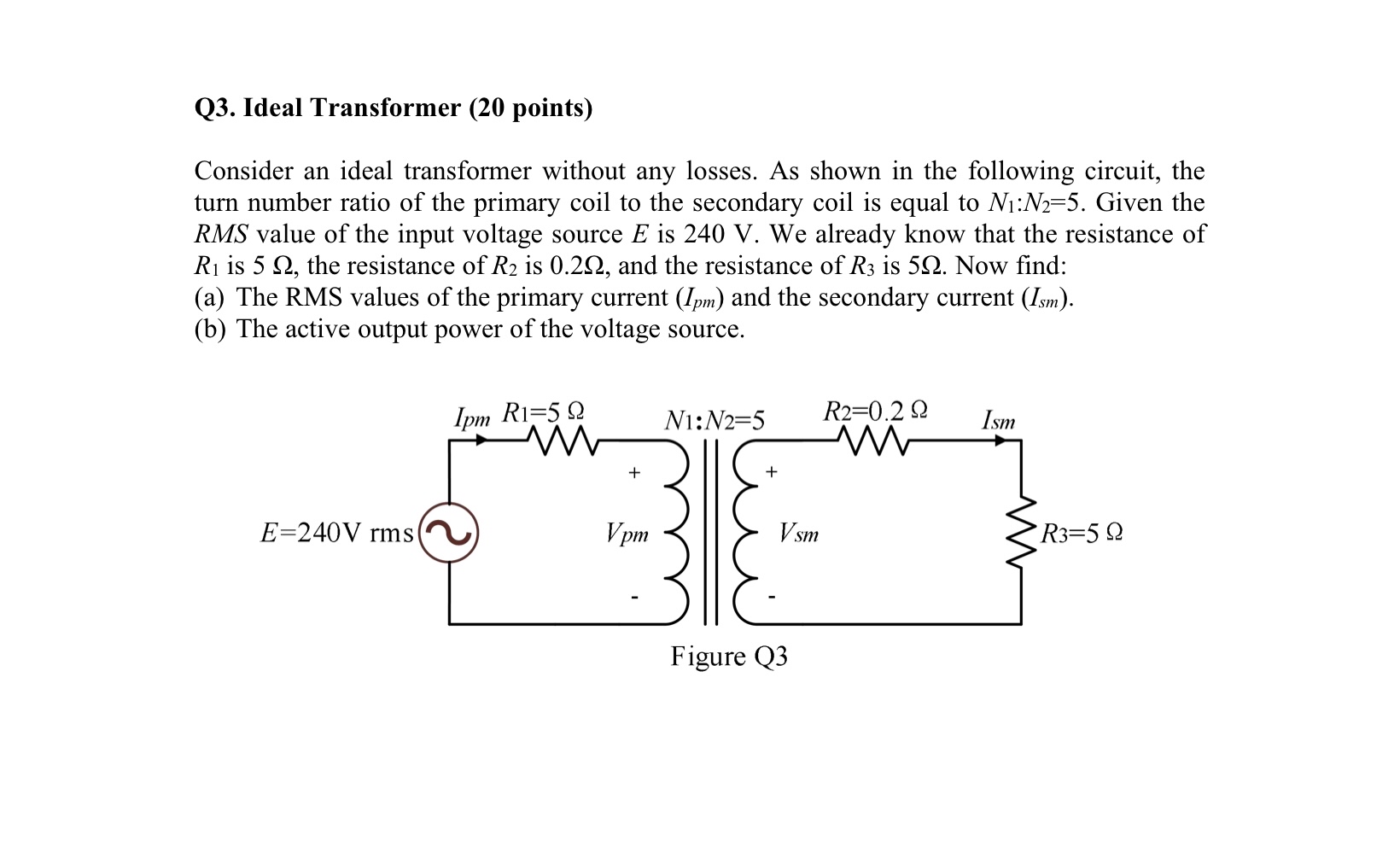

Consider an ideal transformer without any losses. As shown in the following circuit, the turn number ratio of the primary coil to the secondary coil is equal to N1:N2=5. Given the RMS value of the input voltage source E is 240 V . We already know that the resistance of R1 is 5, the resistance of R2 is 0.2, and the resistance of R3 is 5. Now find:
(a) The RMS values of the primary current (Ipm) and the secondary current (Ism).
(b) The active output power of the voltage source.
