Question: Q 3 Indicate all zero force members in the truss in Figure Q 3 . Figure Q 3 Zero force members: BC , JK ,

Q3

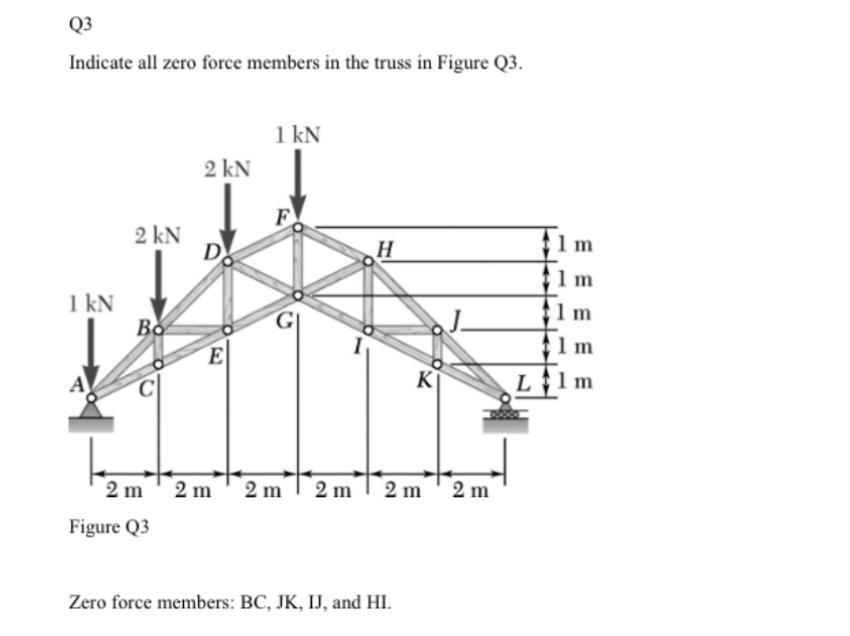

Indicate all zero force members in the truss in Figure Q3.
Figure Q3
Zero force members: BC, JK, IJ, and HI.
Q 3 Indicate all zero force members in the truss

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
