Question: Q 3 . ) The cable supports a uniform load of 8 0 0 N m . The lowest point of the cable is 0

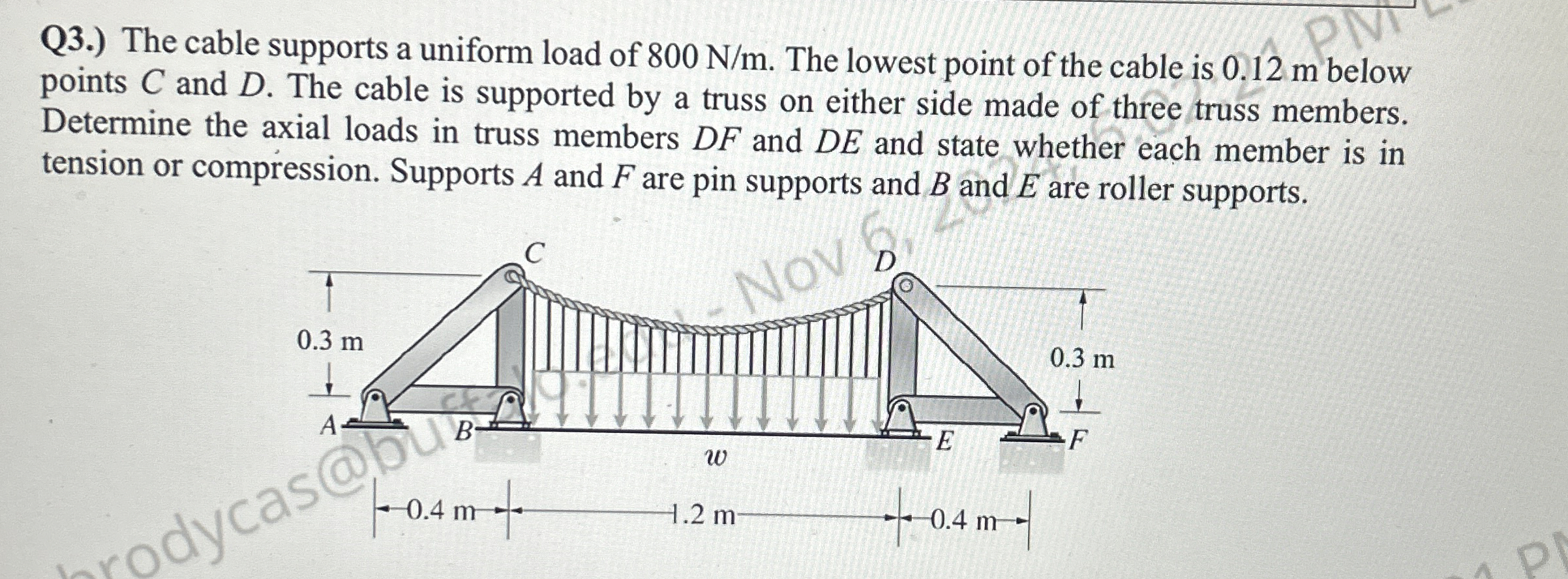

Q3.) The cable supports a uniform load of 800Nm. The lowest point of the cable is 0.12 m below points C and D. The cable is supported by a truss on either side made of three truss members. Determine the axial loads in truss members DF and DE and state whether each member is in tension or compression. Supports A and F are pin supports and B and E are roller supports.
Q 3 . ) The cable supports a uniform load of 8 0

Step by Step Solution

There are 3 Steps involved in it
