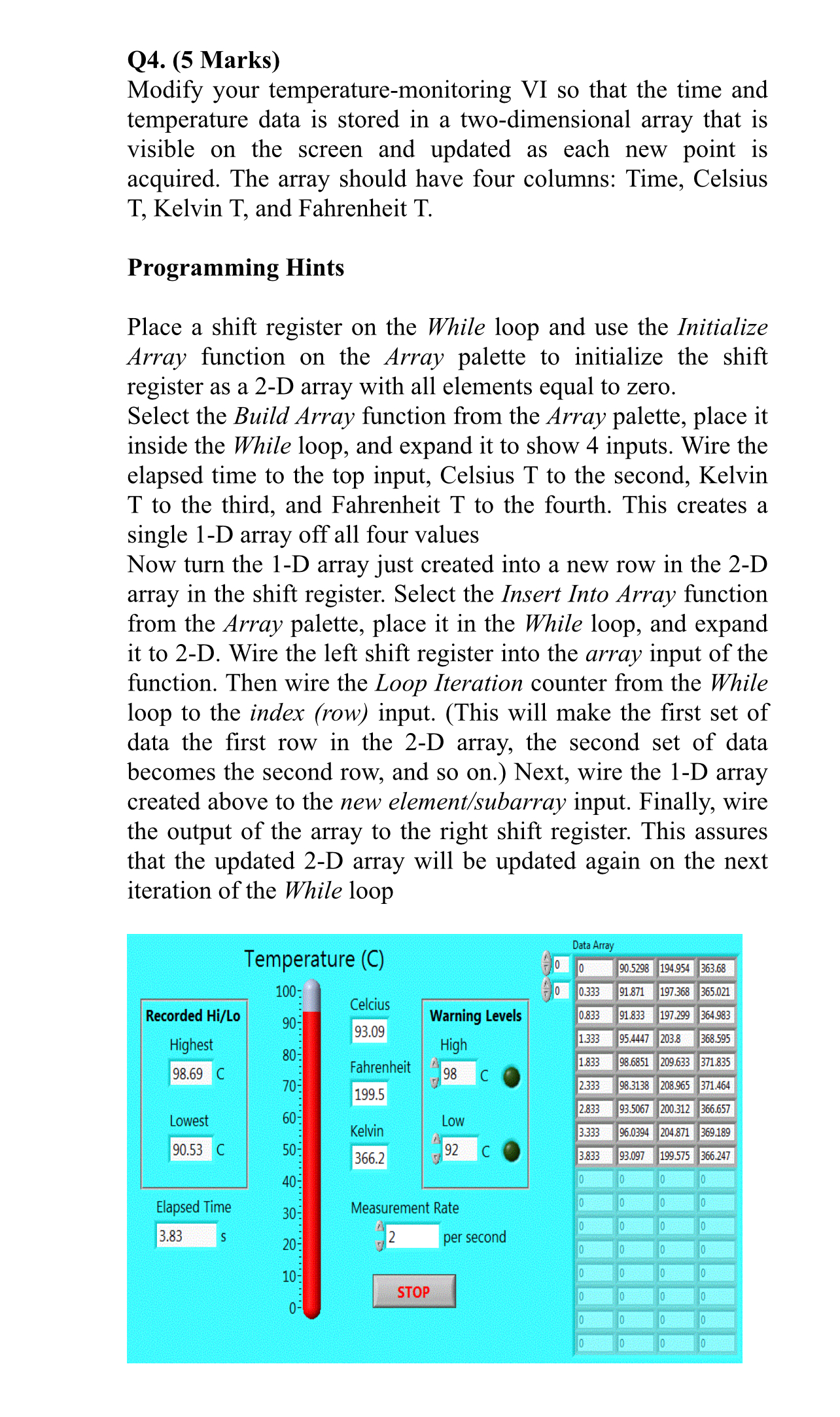

Q$4.(5$ Marks$)$ By using labview

Modify your temperature$-$monitoring VI so that the time and temperature data is stored in a two$-$dimensional array that is visible on the screen and updated as each new point is acquired. The array should have four columns: Time, Celsius T$,$ Kelvin T$,$ and Fahrenheit T$.$

Programming Hints

Place a shift register on the While loop and use the Initialize Array function on the Array palette to initialize the shift register as a $2-$D array with all elements equal to zero.

Select the Build Array function from the Array palette, place it inside the While loop, and expand it to show $4$ inputs. Wire the elapsed time to the top input, Celsius T to the second, Kelvin $T$ to the third, and Fahrenheit $T$ to the fourth. This creates a single $1-$D array off all four values

Now turn the $1-$D array just created into a new row in the $2-$D array in the shift register. Select the Insert Into Array function from the Array palette, place it in the While loop, and expand it to $2-$D$.$ Wire the left shift register into the array input of the function. Then wire the Loop Iteration counter from the While loop to the index $($row$)$ input. $($This will make the first set of data the first row in the $2-$D array, the second set of data becomes the second row, and so on$.)$ Next, wire the $1-$D array created above to the new element$/$subarray input. Finally, wire the output of the array to the right shift register. This assures that the updated $2-$D array will be updated again on the next iteration of the While loop
