Question: Q . 5 ) A 1 0 0 lb . cylinder is hanging from the drum via a cable as shown below. The coefficient of

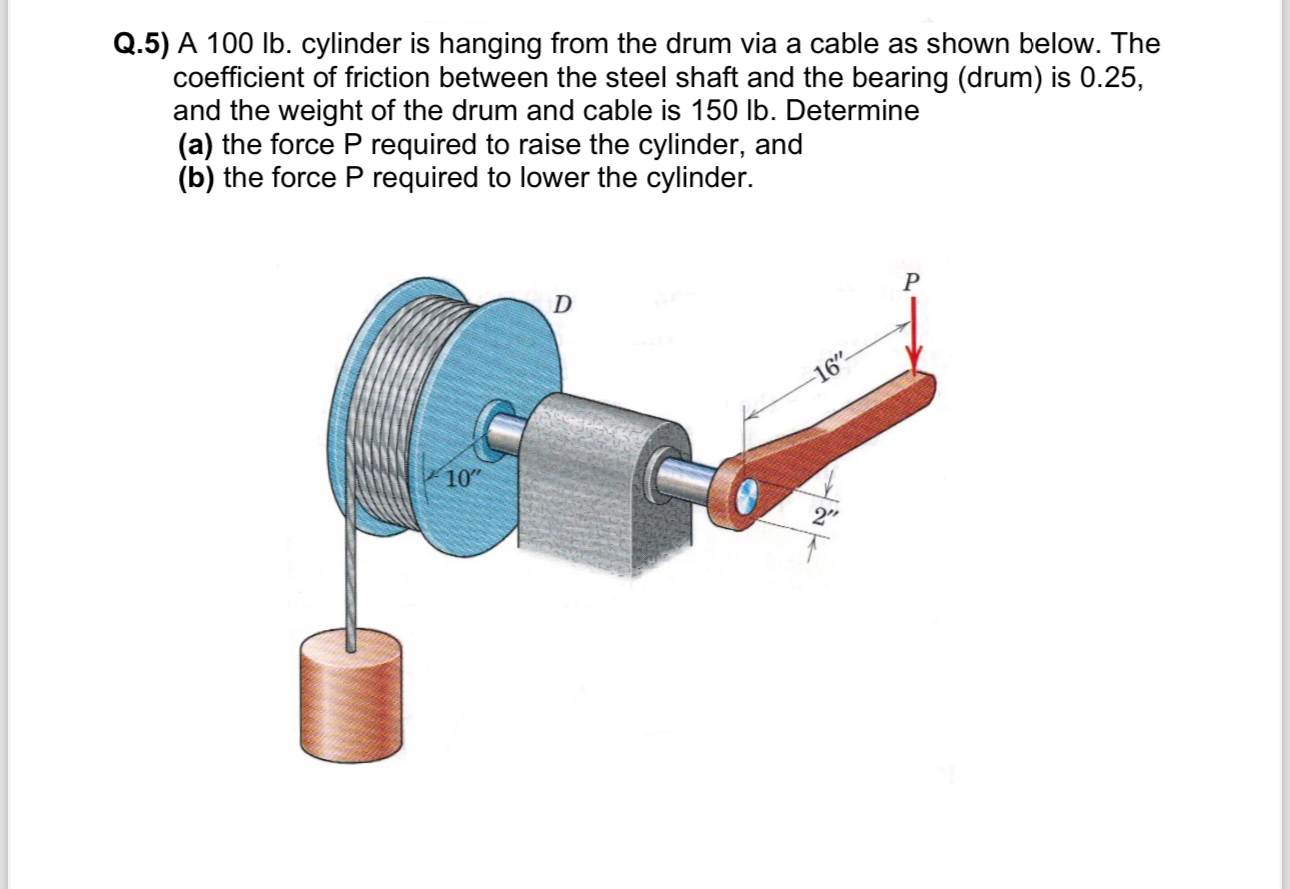

Q.5) A 100 lb . cylinder is hanging from the drum via a cable as shown below. The coefficient of friction between the steel shaft and the bearing (drum) is 0.25, and the weight of the drum and cable is 150 lb . Determine
(a) the force P required to raise the cylinder, and
(b) the force P required to lower the cylinder.
Q . 5 ) A 1 0 0 lb . cylinder is hanging from the
