Question: Q 5 : A 3 . 5 m square footing is resting at 1 . 7 m depth below the ground surface in soff clay

5

: A

3.5

m square footing is resting at

1.7

m depth below the ground surface in soff clay as shown in Figure below. Ground Water Table is located at the base of the footing, Deternine the consolidation settlement which the foundation will undergo when subjected to a load

\ (470 \

mathrm

{

} / \

mathrm

{

}^{2} \)

from the superstructure.

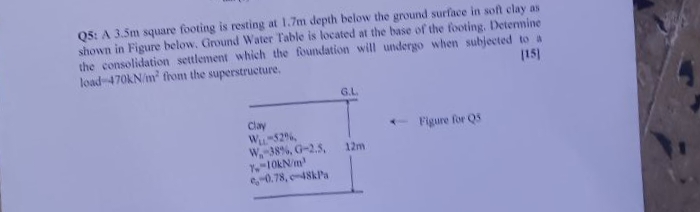

Figure for Q

5

Q 5 : A 3 . 5 m square footing is resting at 1 .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
