Question: Q 5 : Design the foundation shown below to support the following two columns with uniform contact pressure: Column ( 1 ) : P D

Q5: Design the foundation shown below to support the following two columns with uniform contact pressure:

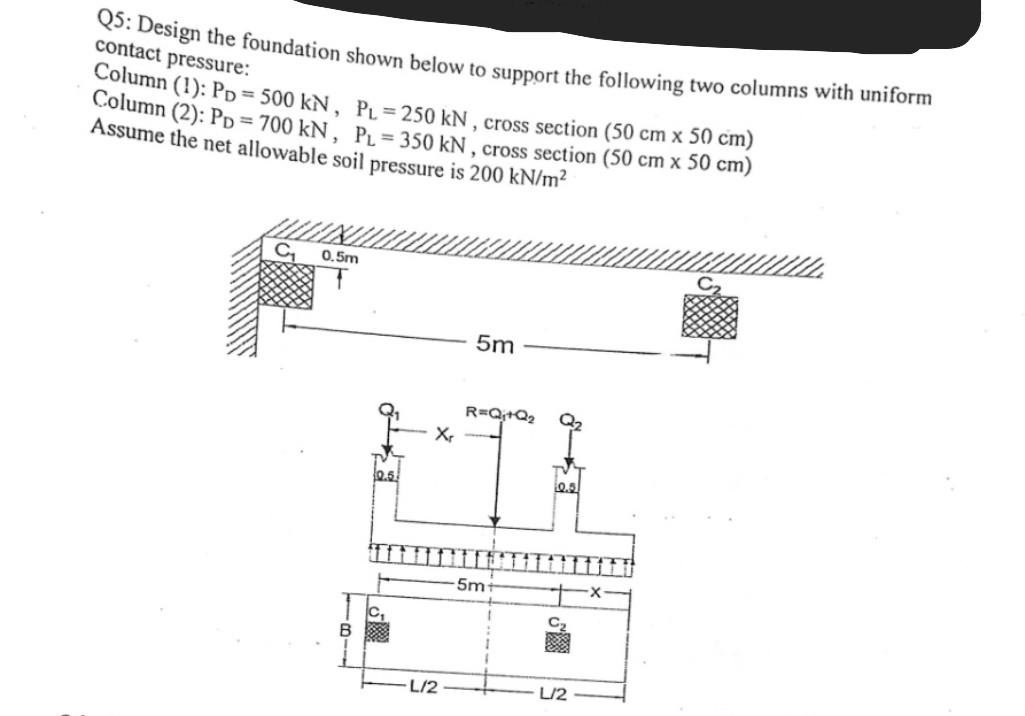

Column (1): PD=500kN,PL=250kN, cross section (50cm50cm) Column (2): PD=700kN,PL=350kN, cross section (50cm50cm) Assume the net allowable soil pressure is 200kNm2
Q 5 : Design the foundation shown below to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
