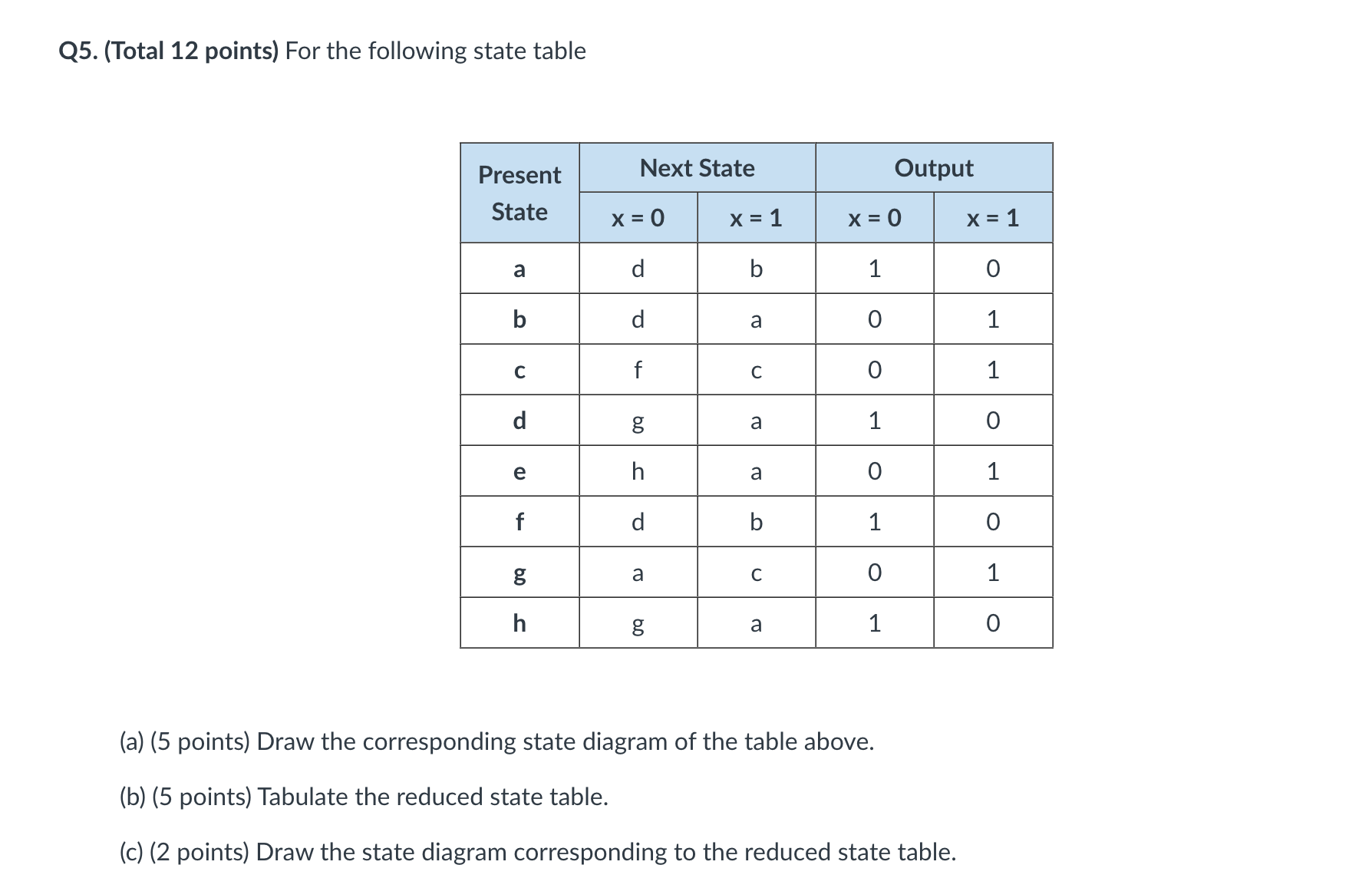

Q$5.($Total $12$ points$)$ For the following state table

$($a$)(5$ points$)$ Draw the corresponding state diagram of the table above.

$($b$)(5$ points$)$ Tabulate the reduced state table.

$($c$)(2$ points$)$ Draw the state diagram corresponding to the reduced state table.
