Question: Q 6 . For the class - A amplifier shown in the Figure Q 6 , obtain the maximum theoretical conversion efficiency for a symmetrical

Q6. For the class-A amplifier shown in the Figure Q6, obtain the maximum theoretical conversion efficiency for a symmetrical square-wave input signal and sine-wave input signal.

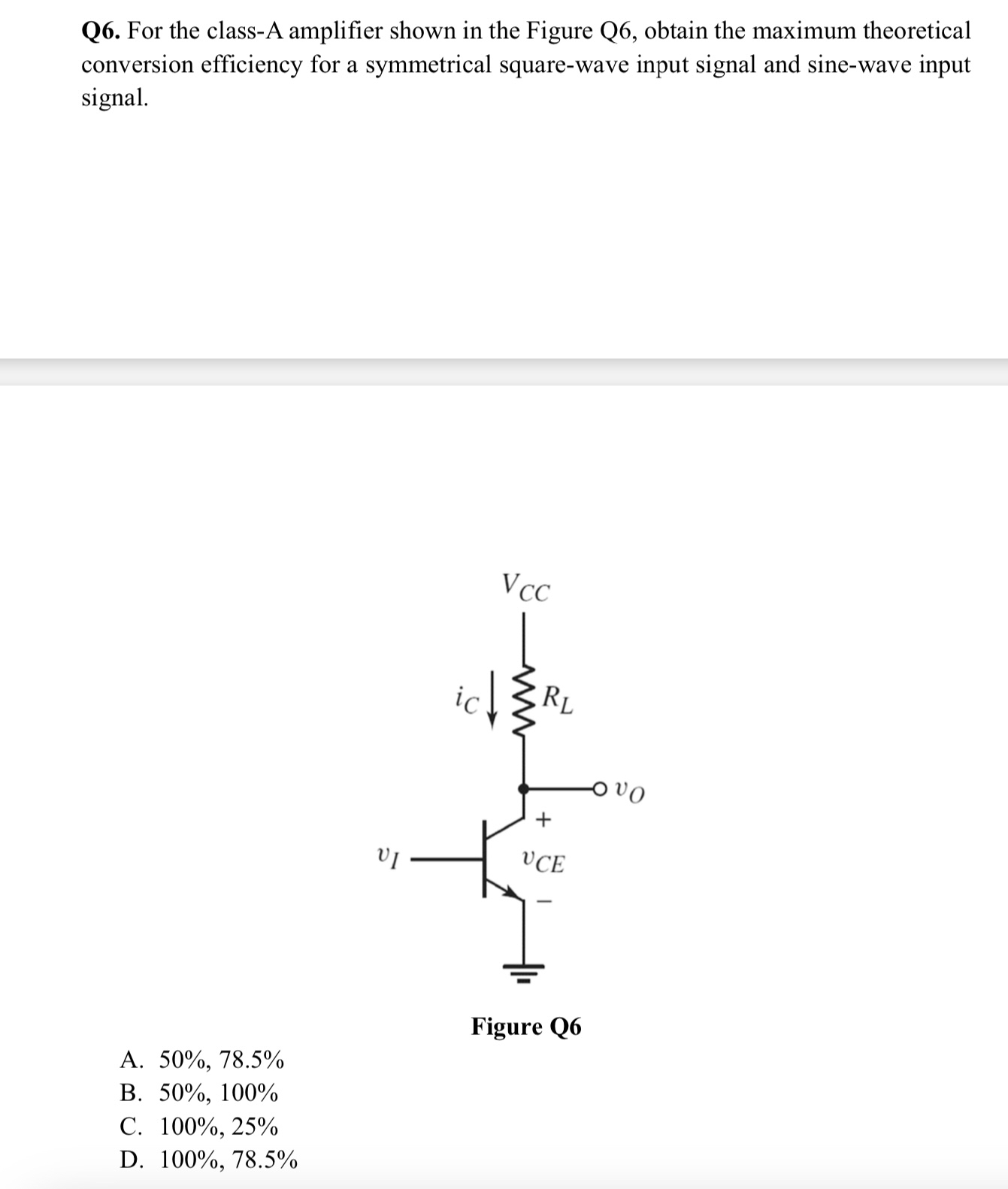

Figure qo
A.50%,78.5%
B.50%,100%
C.100%,25%
D.100%,78.5%
Q 6 . For the class - A amplifier shown in the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
